Lamborghini Victory 230

The Lamborghini Victory 230 is a tractor produced by Lamborghini. It is equipped with a 436.1 ci 7.1 L engine. The listed engine power is Diesel (listed): 230 hp / 171.5 kW. Transmission: ZF T 7300. Operating weight: 18409 lbs 8350 kg.

Engine Power

Diesel (listed): 230 hp / 171.5 kW

Fuel & Capacities

145.3 gal 550.0 L

Transmission

ZF T 7300

Operating Weight

18409 lbs 8350 kg

Overview

	1999 - 2001 Victory SeriesRow-Crop tractor Victory Series Row-Crop tractor

Production
Manufacturer	Lamborghini
Row-Crop tractor

Lamborghini Victory 230 Engine
SAME 7.1L 6-cyl diesel
Fuel tank	145.3 gal 550.0 L
Engine details ...

Lamborghini Victory 230 Transmission
40-speed four-speed power shift
Transmission details ...

Lamborghini Victory 230 Power
Engine	230 hp 171.5 kW

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	closed center
Pump flow	31.7 gpm 120.0 lpm

Tractor hitch
Rear Type	III
Rear lift	23149 lbs 10500 kg
Front Hitch	II OptOptional
Front lift	11244 lbs 5100 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	1000 (1.75)
Front PTO	independent OptOptional
Front PTO Type	1000

Dimensions & Tires
Wheelbase	121.5 inches 308 cm
Weight	18409 lbs 8350 kg
Front tire	520/70R30
Rear tire	620/70R42
Full dimensions and tires ...

References

Diamond 230 - 260 published in 1998, by SAME

Engine

Engine Detail — 436.1 ci / 7.1 L Diesel

Manufacturer	SAME BF6M 1013 FC
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled inline
Displacement	436.1 ci 7.1 L
Bore/Stroke	4.25x5.12 inches 108 x 130 mm
Power	230 hp 171.5 kW
Rated RPM	2350
Torque	656 lb-ft 889.5 Nm
Torque RPM	1350

Lamborghini Victory 230 Engine

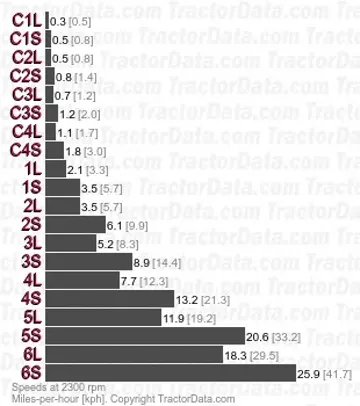

Transmission

Transmission — ZF T 7300

Transmission	ZF T 7300
Type	four-speed power shift
Gears	40 forward and reverse
Clutch	hydraulic wet disc
Six gear, plus four in the creeper range, with four-speed power shift per gear. Power shuttle.

Dimensions

Lamborghini Victory 230 Tires
Standard tires (ag)	Front: 520/70R30. Rear: 620/70R42

Dimensions
Wheelbase	121.5 inches 308 cm
Length	171.7 inches 436 cm
	202 inches*With hitch 513 cm
Width	98 inches*Minimum width. 248 cm
Height (cab)	127 inches 322 cm
Shipping weight	18409 lbs 8350 kg
Ground clearance	23.6 inches 59 cm
Front tread	70.9 to 78.7 inches 180 to 199 cm
Rear tread	70.9 to 78.7 inches 180 to 199 cm

Photos

Lamborghini Victory 230 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Lamborghini Victory 230 based on its 230 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	8+ Bottom On-Land Hitch8+ 铧重型机外牵引犁	Commercial / Field Scale	High horsepower articulated/4WD field plowing.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	24 to 36 ft Heavy Duty Field Disc7.3 - 11.0 m 超宽重型整地耙	Commercial / Field Scale	Broad-acre grain tillage for high-drawbar tractors.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini Victory 230.

Estimated Continuous Field Runtime: 12.1 hrs

Approximately 12.1 hours of continuous field operation at ~75% rated power on a full tank (145.3 gal / 550 L).

Estimated 75% Load Fuel Burn~12 gal/hr (45.3 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
