Lamborghini Rekord 75

The Lamborghini Rekord 75 is a tractor produced by Lamborghini. It is equipped with a 183.1 ci 3.0 L engine. The rated power output is 69 hp 51.5 kW. Transmission: 12 forward and 3 reverse. Drive type: 4x2 2WD. Operating weight: 4,762 lbs (2WD) 2160 kg.

Overview

	2008 - ???? Utility tractor
2008 - ????
Utility tractor

2008 - ????
Utility tractor

Production
Manufacturer	Lamborghini
Utility tractor
Built in Turkey

Variants
Rekord 75	similar Lamborghini model
Agrolux 75	similar Deutz-Fahr model
Tiger 75	similar SAME model

Lamborghini Rekord 75 Engine
SAME 3.0L 3-cyl diesel
Fuel tank	18.5 gal 70.0 L
Engine details ...

Lamborghini Rekord 75 Transmission
12-speed partially synchronized
Transmission details ...

Lamborghini Rekord 75 Power
Engine (gross)	72 hp 53.7 kW
Engine (net)	69 hp 51.5 kW

Mechanical
Drive	4x2 2WD
	4x4 MFWD 4WD (optional)
Differential lock	mechanical front and rear
Steering	hydrostatic power
Hydraulic brakes
Two-post foldable ROPS. Canopy avaailable.

Hydraulics
Type	open center
Valves	2 to 4
Pump flow	8.7 gpm 32.9 lpm
Steering flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	II
Rear lift (at ends)	6,614 lbs 3000 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry mechanical
Rear PTO Type	540/540E (1.375)

Dimensions & Tires
Wheelbase	80.2 inches (2WD) 203 cm
	77.8 inches (4WD) 197 cm
Weight	4762 to 5335 pounds
Rear tire	16.9R30
Full dimensions and tires ...

Engine

	2008 - ???? Utility tractor
2008 - ????
Utility tractor

2008 - ????
Utility tractor

Engine Detail — 183.1 ci / 3.0 L Diesel

Manufacturer	SAME 1000.3
Configuration	turbocharged intercooled diesel, 3-cylinder, liquid-cooled
Displacement	183.1 ci 3.0 L
Bore/Stroke	4.13x4.56 inches 105 x 116 mm
Emissions	Tier III
Rated Power (net)	69 hp 51.5 kW
Rated Power (gross)	72 hp 53.7 kW
Air cleaner	dry with safety cartridge
Rated RPM	2200
Idle RPM	750-2350
Torque	195.5 lb-ft 265.1 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	6.1 qts 5.8 L

Transmission

	2008 - ???? Utility tractor
2008 - ????
Utility tractor

2008 - ????
Utility tractor

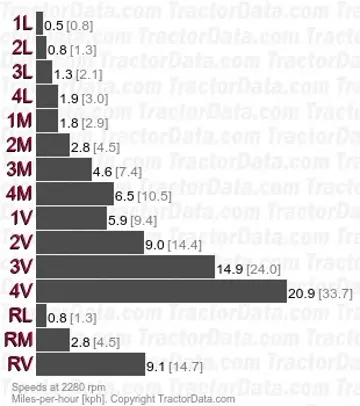

Transmission — 12 forward and 3 reverse partially synchronized

Type	partially synchronized
Gears	12 forward and 3 reverse
Clutch	single dry disc
Four gears (1-4) plus reverse (R) in three ranges (L/M/V). Gear shifts in range are synchronized.
With 16.9R30 rear tires.

Dimensions

	2008 - ???? Utility tractor
2008 - ????
Utility tractor

2008 - ????
Utility tractor

Lamborghini Rekord 75 Tires
Ag rear	16.9R30

Dimensions
Wheelbase	80.2 inches (2WD) 203 cm
	77.8 inches (4WD) 197 cm
Length	130.5 inches 331 cm
Width	78.2 inches 198 cm
Height (steering wheel)	60.8 inches 154 cm
Height (hood)	59.3 inches 150 cm
Weight	4,762 lbs (2WD) 2160 kg
	5,335 lbs (4WD) 2419 kg
Ground clearance	15.8 inches 40 cm
Front tread	68.5 inches 173 cm (2WD)
Front tread	68.9 inches 175 cm (4WD)
Rear tread	72.4 inches 183 cm

Photos

Lamborghini Rekord 75 tractor photo
