Lamborghini 190 Racing
The Lamborghini 190 Racing is a tractor produced by Lamborghini. It is equipped with a 366.12 ci 6.0 L engine. The listed engine power is Diesel (listed): 189 hp / 140.9 kW. Transmission: 27 forward and reverse. Operating weight: 13228 lbs 6000 kg.
Engine Power
Diesel (listed): 189 hp / 140.9 kW
Fuel & Capacities
60.8 gal (early)
230.1 L
Transmission
27 forward and reverse
Operating Weight
13228 lbs
6000 kg
Overview
 | 1992 - 2001
Racing SeriesRow-Crop tractor
Racing Series
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Lamborghini |
Row-Crop tractor | |
Variants | |
|---|---|
H-6190 Master | similar Hurlimann model |
Lamborghini 190 Racing Engine | |
|---|---|
SLH 6.0L 6-cyl diesel | |
Fuel tank | 60.8 gal (early)
230.1 L |
95.1 gal (late)
360.0 L | |
Engine details ...  | |
Lamborghini 190 Racing Transmission | |
|---|---|
27-speed 9-speed power shift | |
Transmission details ...  |
Lamborghini 190 Racing Power | |
|---|---|
Engine | 189 hp
140.9 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Pump flow | 15.9 gpm
60.2 lpm |
Tractor hitch | |
|---|---|
Rear lift | 18963 lbs
8601 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540E/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Weight | 13228 lbs
6000 kg |
Front tire | 16.9R30 |
Rear tire | 20.8R38 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 366.12 ci / 6.0 L Diesel
Manufacturer | SLH 1000.6 |
Configuration | turbocharged diesel, 6-cylinder, liquid-cooled |
Displacement | 366.12 ci
6.0 L |
Bore/Stroke | 4.13x4.55 inches
105 x 116 mm |
Power | 189 hp
140.9 kW |
Rated RPM | 2350 |
Torque | 483.9 lb-ft
656.2 Nm |
Torque RPM | 1350 |
Starter type | electric |
Transmission

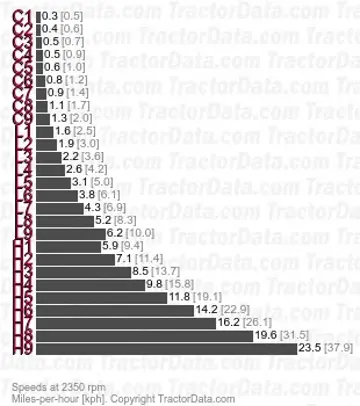

Transmission — 27 forward and reverse 9-speed power shift
Type | 9-speed power shift |
Gears | 27 forward and reverse |
Clutch | electro-hydraulic wet disc |
Nine power shift gears in three ranges. Synchronized shuttle. | |
With 20.8R38 rear tires and 40 KPH transmission option. Reverse speeds are 9% faster than forward. | |
 | |
Dimensions
Lamborghini 190 Racing Tires | |
|---|---|
Ag front | 16.9R30 |
Ag rear | 20.8R38 |
Dimensions | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Length | 177.6 inches
451 cm |
187 inches (with hitch)
474 cm | |
Width | 92.9 inches*Minimum width.
235 cm |
Height (hood) | 75.6 inches
192 cm |
Height (cab) | 114.2 inches
290 cm |
Weight | 13228 lbs
6000 kg |
Ground clearance | 20.3 inches
51 cm |
Front tread | 74.8 to 98.4 inches
189 to 249 cm |
Rear tread | 72.1 to 88.6 inches
183 to 225 cm |
Photos

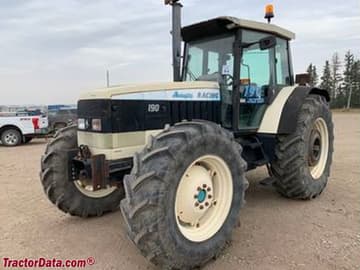

Lamborghini 190 Racing
Recommended Implements & Sizing Guide
Engineering recommendations for Lamborghini 190 Racing based on its 189 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 5 to 7 Bottom (18")5 - 7 铧 (45 cm) | Commercial / Field Scale | Large acreage tillage; requires front ballast weights. |
Rotary Cutter / MowerMowing & Clearing | 15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼 | Commercial / Field Scale | Large commercial field and roadside mowing operations. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙 | Commercial / Field Scale | Wide commercial field leveling; requires hydraulic remotes. |
Hay BalerHay & Forage | Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m) | Commercial / Field Scale | High-capacity commercial forage harvesting (1000 RPM PTO). |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Lamborghini 190 Racing.
Estimated Continuous Field Runtime: 6.2 hrs
Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (60.8 gal / 230.2 L).
Estimated 75% Load Fuel Burn~9.8 gal/hr (37.2 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Lamborghini 190 Racing Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Lamborghini 190 Racing.
Converted Equivalents:
Horsepower (HP)189 hp
Kilowatts (kW)140.9 kW
Metric Horsepower (PS / CV)191.6 PS
Direct Competitor Comparison
Compare Lamborghini 190 Racing against same-era industry alternatives in the same horsepower class.
Current Model
Lamborghini
Lamborghini 190 Racing
Engine Power:Diesel (listed): 189 hp / 140.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 1568
Engine Power:172
Production Years:1974 - 1976
