Lamborghini Champion 200
The Lamborghini Champion 200 is a tractor produced by Lamborghini. It is equipped with a 366.1 ci 6.0 L engine. The rated power output is 195 hp 145.4 kW. Transmission: 27 forward and reverse. Operating weight: 15653 lbs 7100 kg.
Engine Power
195 hp
145.4 kW
Fuel & Capacities
105.7 gal
400.1 L
Transmission
27 forward and reverse
Operating Weight
15653 lbs
7100 kg
Lamborghini Champion 200 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2000 - 2004
Champion SeriesRow-Crop tractor |
|---|---|
2000 - 2004 | |
Champion Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Lamborghini |
Row-Crop tractor | |
Lamborghini Champion 200 Engine | |
|---|---|
SDF 6.0L 6-cyl diesel | |
Fuel tank | 105.7 gal
400.1 L |
Engine details ...  | |
Lamborghini Champion 200 Power | |
|---|---|
Engine | 195 hp
145.4 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Cab standard with air-conditioning. |
Hydraulics | |
|---|---|
Type | load sensing |
Valves | 8 OptOptional |
Pump flow | 29.9 gpm
113.2 lpm |
Tractor hitch | |
|---|---|
Rear lift | 22046 lbs
10000 kg |
Front lift | 8818 lbsOptOptional
3999 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540E/1000 |
540/1000 OptOptional | |
Front PTO | independent OptOptional |
Clutch | electro-hydraulic wet disc |
Front PTO Type | 1000 |
540/1000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Weight | 15653 lbs
7100 kg |
Front tire | 540/65R34 |
Rear tire | 650/65R42 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Champion 160-180-200 published in 1999, by Lamborghini |
Engine
Engine Detail — 366.1 ci / 6.0 L Diesel
Manufacturer | SDF 1000.6 WTI 3V |
Configuration | turbocharged intercooled diesel, 6-cylinder, liquid-cooled |
Displacement | 366.1 ci
6.0 L |
Bore/Stroke | 4.134x4.54 inches
105 x 115 mm |
Power | 195 hp
145.4 kW |
Rated RPM | 2350 |
Torque | 597.5 lb-ft
810.2 Nm |
Torque RPM | 1400 |
Starter type | electric |
Transmission
Transmission options | |
|---|---|
18-speed 9-speed power shift | |
27-speed creeper |

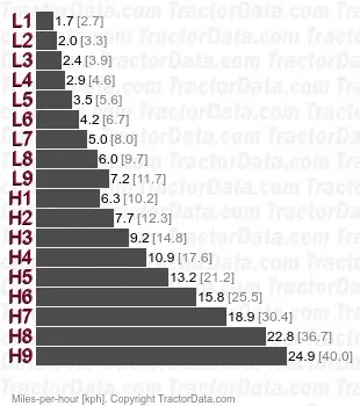

Transmission — 18 forward and reverse 9-speed power shift
Type | 9-speed power shift |
Gears | 18 forward and reverse |
Clutch | hydraulic wet disc |
Nine power shift gears in two ranges with power shuttle. | |
With 580/70R42 rear tires. Rear speeds are aboutg 9% faster than forward. | |
 | |
Transmission | |
Type | creeper |
Gears | 27 forward and reverse |
 | |
Dimensions
Lamborghini Champion 200 Tires | |
|---|---|
Standard tires (ag) | Front: 540/65R34. Rear: 650/65R42 |
Optional tires (ag) | Front: 480/70R34. Rear: 580/70R42 |
Front: 600/70R30. Rear: 710/70R38 | |
Ag front | 540/65R34 |
Ag rear | 650/65R42 |
Dimensions | |
|---|---|
Wheelbase | 112.2 inches
284 cm |
Length | 191.4 inches
486 cm |
Height | 116.9 inches
296 cm |
Height (hood) | 82.1 inches
208 cm |
Weight | 15653 lbs
7100 kg |
Ground clearance | 23.4 inches
59 cm |
Front tread | 73.5 to 73 inches
186 to 185 cm |
Rear tread | 72.1 to 78.7 inches
183 to 199 cm |
