Landini 5830

The Landini 5830 is a tractor produced by Landini. It is equipped with a 152 ci 2.5 L engine. The rated power output is 50 hp 37.3 kW. Transmission: 12 forward and 4 reverse. Operating weight: 5,485 lbs 2487 kg.

Overview

	1983 - 1987	1983 - 1987

Series map: 5830603037.3kw41.8kw

Note: the Landini model 5830 is the same as the Massey Ferguson 254. The following data is from the 254 listing.

Production
Manufacturer	Landini
Original price	$20,600 (1987)

Landini 5830 Engine
Perkins 2.5L 3-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Landini 5830 Transmission
12-speed synchromesh
Transmission details ...

Landini 5830 Power
Engine	50 hp 37.3 kW
PTO (claimed)	42 hp 31.3 kW
Drawbar (tested)	33.97 hp 25.3 kW
PTO (tested)	43.36 hp 32.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Differential lock	pedal-operated
Steering	hydrostatic power
Differential mechanical dry disc brakes
Two-post ROPS.

Hydraulics
Type	open
Pressure	2250 psi 155.1 bar
Valves	2
Pump flow	9.2 gpm 34.8 lpm

Tractor hitch
Rear Type	I
Control	draft and position control
Rear lift (at ends)	5,070 lbs 2299 kg
Rear lift (at 24"/610mm)	3,670 lbs 1664 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/ground
Front PTO	direct-drive
Front PTO Type	2250

Dimensions & Tires
Wheelbase	81.1 inches 205 cm
Weight	5,485 lbs 2487 kg
Front tire	9.5-20
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Series map: 5830603037.3kw41.8kw

Note: the Landini model 5830 is the same as the Massey Ferguson 254. The following data is from the 254 listing.

Engine Detail — 152 ci / 2.5 L Diesel

Manufacturer	Perkins AD3.152
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	152 ci 2.5 L
Bore/Stroke	3.60x5.00 inches 91 x 127 mm
Power	50 hp 37.3 kW
Fuel system	direct injection
Air cleaner	oil bath
Compression	16.5:1
Rated RPM	2250
Torque	132 lb-ft 179.0 Nm
Torque RPM	1400
Starter volts	12
Coolant capacity	11 qts 10.4 L

Transmission

Series map: 5830603037.3kw41.8kw

Note: the Landini model 5830 is the same as the Massey Ferguson 254. The following data is from the 254 listing.

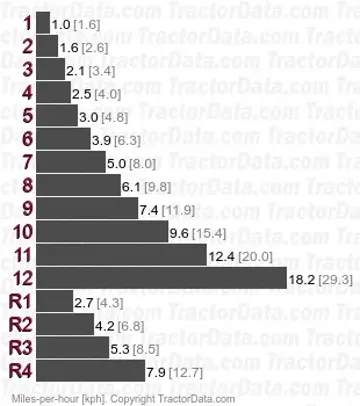

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	11-inch dual dry disc
Four gears in three ranges, plus reverse range.

Dimensions

Series map: 5830603037.3kw41.8kw

Note: the Landini model 5830 is the same as the Massey Ferguson 254. The following data is from the 254 listing.

Landini 5830 Tires
Standard tires (ag)	Front: 9.5-20. Rear: 13.6-28

Dimensions
Wheelbase	81.1 inches 205 cm
Length	140 inches 355 cm
Width	68.5 inches 173 cm
Height	94.5 inches 240 cm
Operating weight	5,485 lbs 2487 kg
Ballasted weight	7,275 lbs 3299 kg
Clearance (front axle)	12 inches 30 cm
Front tread	59.5 inches 151 cm
Rear tread	55 to 75 inches 139 to 190 cm

Tests

Series map: 5830603037.3kw41.8kw

Note: the Landini model 5830 is the same as the Massey Ferguson 254. The following data is from the 254 listing.

Nebraska Tractor Test 1478
Diesel 12-speed 4WD May 11, 1983 - May 23, 1973 Link: Nebraska Tractor Test 1478 file
PTO performance
Power at rated engine speed	43.36 hp 32.3 kW
Fuel use	2.7 gal/hour 10.2 l/hour
Power at rated PTO speed	40.71 hp 30.4 kW
Fuel use	2.5 gal/hour 9.5 l/hour
Drawbar performance
Max power	33.97 hp 25.3 kW
Fuel use	2.6 gal/hour 9.8 l/hour
Gear 8 used for power test.
Max pull	5,279 lbs 2394 kg
Gear 4 used for pull test.

Photos

Landini 5830 tractor photo
