Landini 9880

The Landini 9880 is a tractor produced by Landini. It is equipped with a 235.5 ci 3.9 L engine. The rated power output is 93 hp 69.4 kW. Transmission: 24 forward and 12 reverse. Operating weight: 8378 to 8818 pounds.

Overview

	1987 - 2000 80 SeriesUtility tractor
1987 - 2000
80 Series
Utility tractor

Production
Manufacturer	Landini
Utility tractor

Variants
9880	utility
9880HC	high-crop

Landini 9880 Engine
Perkins 3.9L 4-cyl diesel
Fuel tank	40.2 gal 152.2 L
Engine details ...

Landini 9880 Power
Engine	93 hp 69.4 kW

Mechanical
Two- or four-wheel drive
Differential lock	hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with available air-conditioning.

Hydraulics
Total flow	11.2 gpm 42.4 lpm

Tractor hitch
Rear Type	II
Control	position control and top-link draft sensing
Rear lift	9590 lbs 4350 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
	540/750 OptOptional
Engine RPM	540@1944
	1000@1917
	750@1934

Dimensions & Tires
2WD Wheelbase	97 inches 246 cm
4WD Wheelbase	96 inches 243 cm
Weight	8378 to 8818 pounds
Front tire	9.00-16
Rear tire	18.4R34
Full dimensions and tires ...

Electrical
Charging system	alternator

References
80 Series III published by Landini*
*Publication contains known errors.

Engine

Engine Detail — 235.5 ci / 3.9 L Diesel

Manufacturer	Perkins AT4.236
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	235.5 ci 3.9 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Power	93 hp 69.4 kW
Air cleaner	dry
Compression	15.1:1
Rated RPM	2200
Torque	255.9 lb-ft 347.0 Nm
Torque RPM	1400

Transmission

Transmission options
12-speed synchromesh
12-speed shuttle
24-speed synchromesh
24-speed creeper

Transmission — 12 forward and 4 reverse synchromesh

Type	synchromesh
Gears	12 forward and 4 reverse
Clutch	dry disc
Four gears in three ranges.

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
Clutch	dry disc
Four gears in three ranges with shuttle.
With 16.9/14-34 rear tires. Reverse speeds are 1% faster than forward.

Transmission — 24 forward and 12 reverse synchromesh

Type	synchromesh
Gears	24 forward and 12 reverse
The base transmission can be equipped with either an underdrive or overdrive range. The underdrive option reduces base speeds by 22%. The overdrive option increases base speeds by 29%.

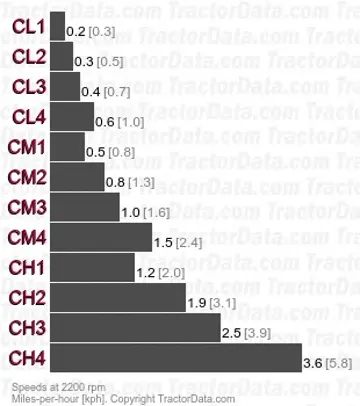

Type	creeper
Gears	24 forward and 12 reverse
With 16.9/14-34 rear tires.

Dimensions

Landini 9880 Tires
Ag front	9.00-16
Ag rear	18.4R34
Ag front	14.9R24
Ag rear	18.4R34

Dimensions
2WD Wheelbase	97 inches 246 cm
4WD Wheelbase	96 inches 243 cm
Length	152.4 inches 387 cm
Width	70.5 inches 179 cm
Height (cab)	104.1 inches 264 cm
2WD Weight	8378 lbs 3800 kg
4WD Weight	8818 lbs 3999 kg
4WD Clearance (front axle)	18 inches 45 cm

Photos

Landini 9880 tractor photo
