Leyland 2100

The Leyland 2100 is a tractor produced by Leyland. It is equipped with a 344.7 ci 5.6 L engine. The rated power output is 100 hp 74.6 kW. Transmission: 9 forward and 3 reverse. Operating weight: 8910 lbs 4041 kg.

Overview

	1972 - 1980 Row-Crop tractor
1972 - 1980
Row-Crop tractor

Production
Manufacturer	Leyland
Row-Crop tractor
Built in Bathgate, Scotland

Variants
2100	2WD
4100	4WD

Leyland 2100 Engine
Leyland 5.6L 6-cyl diesel
Fuel tank	25 gal 94.6 L
Engine details ...

Leyland 2100 Power
Engine	100 hp 74.6 kW
PTO (claimed)	88 hp 65.6 kW
Drawbar (tested)	73.24 hp 54.6 kW
PTO (tested)	88.40 hp 65.9 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Independent hydraulic wet disc brakes
Cab standard. Insulated cab with heat after 1976. Open station available.

Hydraulics
Type	open center
Pump flow	11 gpm 41.6 lpm

Tractor hitch
Rear Type	II
Rear lift	6000 lbs 2721 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	1000@1818

Dimensions & Tires
Wheelbase	90 inches 228 cm
Weight	8910 lbs 4041 kg
Front tire	7.50-16
Rear tire	14-34
Full dimensions and tires ...

Engine

Engine Detail — 344.7 ci / 5.6 L Diesel

Manufacturer	Leyland 6/98
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	344.7 ci 5.6 L
Bore/Stroke	3.858x4.921 inches 98 x 125 mm
Power	100 hp 74.6 kW
Air cleaner	cyclonic dry type
Compression	16.8:1
Rated RPM	2100
Starter volts	12

Transmission

Transmission options
10-speed
9-speed synchromesh

Transmission — 10 forward and 2 reverse

Gears	10 forward and 2 reverse
Clutch	dry disc
Five gears, plus reverse, in two ranges.

Transmission — 9 forward and 3 reverse synchromesh

Type	synchromesh
Gears	9 forward and 3 reverse
Three synchronized gears, plus reverse, in three ranges. The synchro transmission became available in 1979.

Dimensions

Leyland 2100 Tires
Ag front	7.50-16
Ag rear	14-34

Dimensions
Wheelbase	90 inches 228 cm
Length	150 inches 381 cm
Width	85.5 inches 217 cm
Operating weight	8910 lbs 4041 kg
Ballasted weight	13260 lbs 6014 kg

Tests

Nebraska Tractor Test 1178
Diesel 10-speed 2WD May 3 - 30, 1975 Link: Nebraska Tractor Test 1178 file
PTO performance
Power at rated engine speed	88.40 hp 65.9 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Power at rated PTO speed	83.30 hp 62.1 kW
Fuel use	5.1 gal/hour 19.3 l/hour
Drawbar performance
Max power	73.24 hp 54.6 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Gear 6 used for power test.
Max pull	5056 lbs 2293 kg
Gear 2-High used for pull test.

Photos

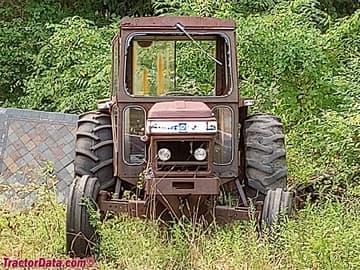

Leyland 2100
