Leyland 272
The Leyland 272 is a tractor produced by Leyland. It is equipped with a 230 ci 3.8 L engine. The rated power output is 71 hp 52.9 kW. Transmission: 10 forward and 2 reverse. Operating weight: 7500 lbs 3402 kg.
Engine Power
71 hp
52.9 kW
Fuel & Capacities
18 gal
68.1 L
Transmission
10 forward and 2 reverse
Operating Weight
7500 lbs
3402 kg
Leyland 272 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1976 - 1984 | 1976 - 1984 |
|---|
Production | |
|---|---|
Manufacturer | Leyland |
Original price | $12,500 (1984) |
The Leyland 472 is the four-wheel drive version of the 272. | |
Variants | |
|---|---|
272 | 2WD |
472 | 4WD |
Leyland 272 Engine | |
|---|---|
Leyland 3.8L 4-cyl diesel | |
Fuel tank | 18 gal
68.1 L |
Engine details ...  | |
Leyland 272 Power | |
|---|---|
Engine | 71 hp
52.9 kW |
Drawbar (tested) | 51.59 hp
38.5 kW |
PTO (tested) | 63.52 hp
47.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | hydrostatic power |
Independent hydraulic dry disc brakes | |
Tractor hitch | |
|---|---|
Rear Type | I,II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 83.28 inches
211 cm |
Weight | 7500 lbs
3402 kg |
Front tire | 7.50-16 |
Rear tire | 18.4-30 |
Full dimensions and tires ...  | |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Leyland |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.858x4.921 inches
98 x 125 mm |
Power | 71 hp
52.9 kW |
Air cleaner | single paper element |
Compression | 16.8:1 |
Rated RPM | 2200 |
Torque | 58 lb-ft
78.6 Nm |
Torque RPM | 1200 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
9-speed | |
10-speed |
Transmission — 9 forward and 3 reverse
Gears | 9 forward and 3 reverse |
 | |
Transmission — 10 forward and 2 reverse
Gears | 10 forward and 2 reverse |
Dimensions
Leyland 272 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 18.4-30 |
Dimensions | |
|---|---|
Wheelbase | 83.28 inches
211 cm |
Length | 134 inches
340 cm |
Height | 105.5 inches
267 cm |
Weight | 7500 lbs
3402 kg |
Tests
Nebraska Tractor Test 1341 | |
|---|---|
Diesel 9-speed 2WD
April 18 - 26, 1980
Link: Nebraska Tractor Test 1341 file | |
PTO performance | |
Power at rated engine speed | 63.52 hp
47.4 kW |
Fuel use | 4.6 gal/hour
17.4 l/hour |
Power at rated PTO speed | 58.50 hp
43.6 kW |
Fuel use | 3.9 gal/hour
14.8 l/hour |
Drawbar performance | |
Max power | 51.59 hp
38.5 kW |
Fuel use | 4.6 gal/hour
17.4 l/hour |
Gear 4 used for power test. | |
Photos

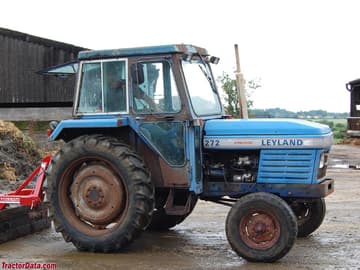

Leyland 272
