Leyland 384

The Leyland 384 is a tractor produced by Leyland. It is equipped with a 230.1 ci 3.8 L engine. The rated power output is 75 hp 55.9 kW. Transmission: 10 forward and 2 reverse. Operating weight: 5600 lbs 2540 kg.

Overview

	1969 - 1972	1969 - 1972

Production
Manufacturer	Leyland

Leyland 384 Engine
Leyland 3.8L 4-cyl diesel
Engine details ...

Leyland 384 Transmission
10-speed
Transmission details ...

Leyland 384 Power
Engine (gross)	75 hp 55.9 kW
PTO (claimed)	56 hp (540 RPM) 41.8 kW
	62 hp (max) 46.2 kW

Mechanical
Two-wheel drive
Final drives	spur gear
Manual steering
Mechanical dry disc brakes
Open operator station. Cab optional.

Capacity
Fuel	18 gal 68.1 L
Hydraulic system	14.9 gal 56.4 L

Hydraulics
Type	open center
Capacity	14.9 gal 56.4 L
Pump flow	7.8 gpm 29.5 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	4924 lbs 2233 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@1813

Dimensions & Tires
Wheelbase	80 inches 203 cm
Weight	5600 lbs 2540 kg
Front tire	7.50-16
Rear tire	13.6/12-36
Full dimensions and tires ...

Electrical
Charging system	generator
Charging amps	18
Battery volts	12
Battery AH	120

References
384 published in 1971, by Leyland

Engine

Engine Detail — 230.1 ci / 3.8 L Diesel

Manufacturer	Leyland 38 TD
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	230.1 ci 3.8 L
Bore/Stroke	3.94x4.73 inches 100 x 120 mm
Power (gross)	75 hp 55.9 kW
Fuel system	direct injection
Air cleaner	dry
Compression	17.3:1
Rated RPM	2200
Torque	176 lb-ft 238.7 Nm
Torque RPM	1400
Firing order	1-3-4-2
Starter	electric
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	14.4 qts 13.6 L

Transmission

Transmission — 10 forward and 2 reverse

Gears	10 forward and 2 reverse
Clutch	279mm dry disc
Oil capacity	60 qts 56.8 L
With 13.6/12-36 rear tires.

Dimensions

Leyland 384 Tires
Ag front	7.50-16
Ag rear	13.6/12-36
Ag rear	16.9/14-30
	18.4/15-30
	13.6-12-38

Dimensions
Wheelbase	80 inches 203 cm
Length	134 inches 340 cm
Width	68.6 inches 174 cm
Height (steering wheel)	66 inches 167 cm
Height (exhaust)	87.8 inches 223 cm
Weight	5600 lbs 2540 kg
Clearance (front axle)	18.2 inches 46 cm
Clearance (rear axle)	24.2 inches 61 cm
Front tread	52 to 76 inches 132 to 193 cm
Rear tread	52 to 80 inches 132 to 203 cm

Photos

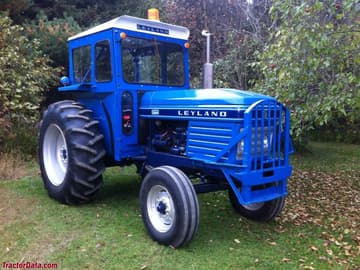

Leyland 384 with cab.

Open station 1969 model Leyland 384.

Open station 1969 model Leyland 384.

Open station 1969 model Leyland 384.

Open station 1969 model Leyland 384.
