Mahindra 1626

The Mahindra 1626 is a tractor produced by Mahindra. It is equipped with a 80.43 ci 1.3 L engine. The rated power output is 25.9 hp 19.3 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 840 lbs 381 kg.

Overview

	2018 - 1600 SeriesCompact Utility tractor
2018 -
1600 Series
Compact Utility tractor

Production
Manufacturer	Mahindra
Compact Utility tractor
Original price	$18,200 (2018 gear )
	$23,890 (2018 hydro )

Mahindra 1626 Engine
Mitsubishi 1.3L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

Mahindra 1626 Power
Engine	25.9 hp 19.3 kW
Gear PTO (claimed)	21.5 hp 16.0 kW
Hydro PTO (claimed)	19 hp 14.2 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Pressure	2200 psi 151.7 bar
Pump flow	7.5 gpm 28.4 lpm
Steering flow	3.2 gpm 12.1 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift (at ends)	2646 lbs 1200 kg
Rear lift (at 24"/610mm)	1720 lbs 780 kg

Power Take-off (PTO)
Shuttle Rear PTO	live
Hydro Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2376
Mid PTO Type	2000 (1.0)
Engine RPM	2000@2545

Dimensions & Tires
Wheelbase	67.3 inches 170 cm
Weight	2437 to 2459 pounds
Front tire	7-16
Rear tire	11.2-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Battery CCA	540
Battery volts	12

References
1600 Series published in 2019, by Mahindra

Engine

Engine Detail — 80.43 ci / 1.3 L Diesel

Manufacturer	Mitsubishi S3L2
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	80.43 ci 1.3 L
Bore/Stroke	3.071x3.622 inches 78 x 92 mm
Emissions	Tier IV
Power	25.9 hp 19.3 kW
Fuel system	indirect injection
Air cleaner	dry
Compression	22:1
Rated RPM	2500
Idle RPM	970-2710
Starter	electric
Starter volts	12
Intake valve clearance	0.010 inches*Cold 0.254 mm
Exhaust valve clearance	0.010 inches*Cold 0.254 mm

Transmission

Transmission options
8-speed sync shuttle
hydrostatic

Transmission — 8 forward and reverse sync shuttle

Type	sync shuttle
Gears	8 forward and reverse
Clutch	215mm mechanical dry disc
With 15x19.5 rear tires. Reverse speeds are 15% slower than forward.

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)
With 15x19.5 rear tires.

Dimensions

Mahindra 1626 Tires
Standard tires (ag)	Front: 7-16. Rear: 11.2-24
Lawn/turf front	25x8.5-14
Lawn/turf rear	13.6x16
Industrial front	27x8.5-15
Industrial rear	15x19.5

Dimensions
Wheelbase	67.3 inches 170 cm
Length	121.3 inches 308 cm
Width	63 inches 160 cm
Height (ROPS)	81.5 inches 207 cm
Ground clearance	11.4 inches 28 cm

Mahindra 1626 Weight
Hydro Operating	2459 lbs 1115 kg
Gear Operating	2437 lbs 1105 kg
Max Drawbar	969 lbs 439 kg

Attachments

Attachment overview
72" mid-mount mower deck
Front-end loader
Backhoe

72" Mower deck
Type	mid-mount Mahindra
Cutting width	72 inches 182 cm

Mahindra 1626B Backhoe
Backhoe type	Mahindra 1626B Backhoe
Weight	840 lbs 381 kg
Bucket width	16 inches 40 cm
Digging depth	86 inches 218 cm
2-Foot flat digging depth	84 inches 213 cm
Bucket force	2440 lbs 1106 kg
Dipperstick force	1510 lbs 684 kg

Photos

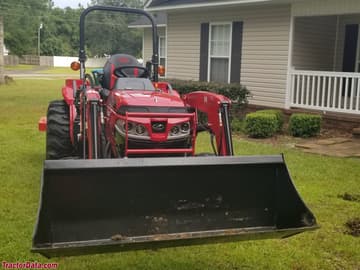

Mahindra 1626

Mahindra 1626

Mahindra 1626
