Mahindra 1640
The Mahindra 1640 is a tractor produced by Mahindra. It is equipped with a 166.7 ci 2.7 L engine. The listed engine power is Diesel (listed): 38.7 hp / 28.9 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1250 lbs 567 kg.
Engine Power
Diesel (listed): 38.7 hp / 28.9 kW
Fuel & Capacities
7.7 gal
29.1 L
Transmission
infinite forward and reverse (3-range)
Operating Weight
1250 lbs
567 kg
Overview
 | 2018 -
1600 SeriesCompact Utility tractor |
|---|---|
2018 - | |
1600 Series | |
Compact Utility tractor | |
Production | |
|---|---|
Manufacturer | Mahindra |
Compact Utility tractor | |
Original price | $25,900 (2018 gear ) |
$27,300 (2018 hydro ) | |
Mahindra 1640 Engine | |
|---|---|
Mahindra 2.7L 4-cyl diesel | |
Fuel tank | 7.7 gal
29.1 L |
Engine details ...  | |
Mahindra 1640 Power | |
|---|---|
Engine | 38.7 hp
28.9 kW |
PTO (claimed) | 27.7 hp
20.7 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Wet disc brakes | |
Two-post folding ROPS. |
Hydraulics | |
|---|---|
Type | open center |
Pump flow | 7.7 gpm
29.1 lpm |
Steering flow | 3.4 gpm
12.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 2646 lbs
1200 kg |
Power Take-off (PTO) | |
|---|---|
Shuttle Rear PTO | live |
Hydro Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2376 |
Mid PTO Type | 2000 |
Engine RPM | 2000@2545 |
Dimensions & Tires | |
|---|---|
Wheelbase | 76.9 inches
195 cm |
Weight | 3175 to 3627 pounds |
Front tire | 7-16 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 90 |
Battery CCA | 925 |
Battery volts | 12 |
References | |
|---|---|
 | |
1600 Series published in 2019, by Mahindra |
Engine
Engine Detail — 166.7 ci / 2.7 L Diesel
Manufacturer | Mahindra |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 166.7 ci
2.7 L |
Bore/Stroke | 3.50x4.33 inches
89 x 110 mm |
Emissions | Tier IV |
Power | 38.7 hp
28.9 kW |
Fuel system | direct injection |
Rated RPM | 2400 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
8-speed sync shuttle | |
hydrostatic |
Transmission — 8 forward and reverse sync shuttle
Type | sync shuttle |
Gears | 8 forward and reverse |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
Mahindra 1640 Tires | |
|---|---|
Standard tires (ag) | Front: 7-16. Rear: 11.2-24 |
Lawn/turf front | 27x10.5-15 |
Lawn/turf rear | 41x14-20 |
Industrial front | 28x8.5-15 |
Industrial rear | 43x16-20 |
Dimensions | |
|---|---|
Wheelbase | 76.9 inches
195 cm |
Length | 127.8 inches
324 cm |
Width | 62 inches
157 cm |
Height (ROPS) | 89.4 inches
227 cm |
Height (cab) | 91 inches
231 cm |
Ground clearance | 12.8 inches
32 cm |
Mahindra 1640 Weight | |
|---|---|
ROPS gear Operating | 3186 lbs
1445 kg |
ROPS hydro Operating | 3175 lbs
1440 kg |
Cab hydro Operating | 3627 lbs
1645 kg |
Attachments
Attachment overview | |
|---|---|
72" mid-mount mower deck | |
Front-end loader | |
Backhoe |
72" Mower deck | |
|---|---|
Type | mid-mount Mahindra 1672M |
Cutting width | 72 inches
182 cm |
Mahindra 55B Backhoe | |
|---|---|
Backhoe type | Mahindra 55B Backhoe |
Weight | 1250 lbs
567 kg |
Bucket width | 16 inches
40 cm |
Digging depth | 95 inches
241 cm |
2-Foot flat digging depth | 93.5 inches
237 cm |
Bucket force | 3439 lbs
1559 kg |
Dipperstick force | 2214 lbs
1004 kg |
Photos

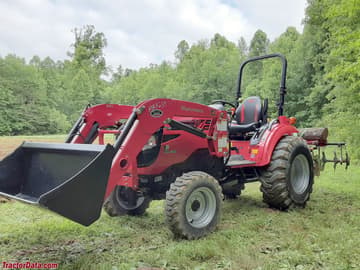

Mahindra 1640
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 1640 based on its 38.7 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Hay BalerHay & Forage | Small Square Baler (14x18")小方捆打捆机 (36x46 cm) | Medium Duty | Classic 2-string baler for horse and small livestock hay. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 1640.
Estimated Continuous Field Runtime: 3.8 hrs
Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (7.7 gal / 29.1 L).
Estimated 75% Load Fuel Burn~2 gal/hr (7.6 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 1640 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 1640.
Converted Equivalents:
Horsepower (HP)38.7 hp
Kilowatts (kW)28.9 kW
Metric Horsepower (PS / CV)39.2 PS
Direct Competitor Comparison
Compare Mahindra 1640 against same-era industry alternatives in the same horsepower class.
Current Model
Mahindra
Mahindra 1640
Engine Power:Diesel (listed): 38.7 hp / 28.9 kW
★ Baseline Reference
