Mahindra 1533

The Mahindra 1533 is a tractor produced by Mahindra. It is equipped with a 166.7 ci 2.7 L engine. The rated power output is 34.5 hp 25.7 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 1271 lbs 576 kg.

Overview

	2016 - 2018 1500 SeriesCompact Utility tractorMitsubishi built
2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

Production
Distributor	Mahindra
Manufacturer	Mitsubishi
Compact Utility tractor
Built in Japan
Original price	$20,655 (2016 shuttle )
	$22,005 (2016 hydrostatic )

Mahindra 1533 Engine
Mahindra 2.7L 4-cyl diesel
Fuel tank	7.7 gal 29.1 L
Engine details ...

Mahindra 1533 Power
Engine	34.5 hp 25.7 kW
Shuttle PTO (claimed)	25.2 hp 18.8 kW
Hydro PTO (claimed)	24.7 hp 18.4 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post foldable ROPS.

Hydraulics
Type	open center
Rear valves	1 OptOptional
Pump flow	7.7 gpm 29.1 lpm
Steering flow	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	2646 lbs 1200 kg
Rear Arms	telescopic stabilizers

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2376
Mid PTO Type	2000
Engine RPM	2000@2525

Dimensions & Tires
Weight	3164 to 3175 pounds
Front tire	7x16
Rear tire	11.2x24
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	90
Charging volts	12
Battery volts	12
Battery AH	46

Engine

	2016 - 2018 1500 SeriesCompact Utility tractorMitsubishi built
2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 166.7 ci / 2.7 L Diesel

Manufacturer	Mahindra
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	166.7 ci 2.7 L
Bore/Stroke	3.50x4.33 inches 89 x 110 mm
Emissions	Tier IV
Power	34.5 hp 25.7 kW
Fuel system	direct injection
Compression	19.5:1
Rated RPM	2400
Starter	electric
Starter volts	12

Transmission

	2016 - 2018 1500 SeriesCompact Utility tractorMitsubishi built
2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

Transmission options
8-speed shuttle
hydrostatic

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission — infinite forward and reverse (3-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (3-range)

Dimensions

	2016 - 2018 1500 SeriesCompact Utility tractorMitsubishi built
2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

Mahindra 1533 Tires
Standard tires (ag)	Front: 7x16. Rear: 11.2x24
Lawn/turf front	25x8.5-14
Lawn/turf rear	13.6x16
Industrial front	27x8.5-15
Industrial rear	15x19.5

Dimensions
Length	127.8 inches 324 cm
Width	63 inches 160 cm
Height (ROPS)	90.2 inches 229 cm
Shuttle Weight	3175 lbs 1440 kg
Hydro Weight	3164 lbs 1435 kg

Attachments

	2016 - 2018 1500 SeriesCompact Utility tractorMitsubishi built
2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

2016 - 2018
1500 Series
Compact Utility tractor
Mitsubishi built

Attachment overview
Front-end loader
Backhoe

Mahindra 1538B Backhoe
Backhoe type	Mahindra 1538B Backhoe
Weight	1271 lbs 576 kg
Transport height	119 inches 302 cm
Digging depth	94 inches 238 cm
2-Foot flat digging depth	92 inches 233 cm
Reach from pivot	127.8 inches 324 cm
Loading height	63 inches 160 cm
Bucket Rotation	175°
Swing Arc	180°
Bucket force	2900 lbs 1315 kg
Dipperstick force	1800 lbs 816 kg

Photos

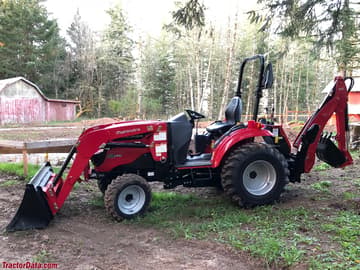

Mahindra 1533, left side.

Mahindra 1533, right side.
