Mahindra 3510
The Mahindra 3510 is a tractor produced by Mahindra. It is equipped with a 100.3 ci 1.6 L engine. The listed engine power is Diesel (listed): 34 hp / 25.4 kW. Transmission: infinite forward and reverse (3-range). Operating weight: 3064 to 3881 pounds.
Engine Power
Diesel (listed): 34 hp / 25.4 kW
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse (3-range)
Operating Weight
3064 to 3881 pounds
Overview
 | 2002 - 2009
10 SeriesCompact Utility tractorTYM built
10 Series
Compact Utility tractor
TYM built |
|---|
Production | |
|---|---|
Distributor | Mahindra |
Manufacturer | TYM |
Compact Utility tractor | |
Built in South Korea | |
Mahindra 3510 Engine | |
|---|---|
Mahindra 1.6L 3-cyl diesel | |
Engine details ...  |
Mahindra 3510 Power | |
|---|---|
Engine | 34 hp
25.4 kW |
PTO (claimed) | 28.7 hp (gear)
21.4 kW |
28 hp (hydro)
20.9 kW | |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Wet disc brakes | |
Hydraulics | |
|---|---|
Type | open center |
Valves | 1 |
Gear Pump flow | 7.87 gpm
29.8 lpm |
Hydro Pump flow | 6.4 gpm
24.2 lpm |
Gear Steering flow | 3.57 gpm
13.5 lpm |
Hydro Steering flow | 4.60 gpm
17.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Gear Rear lift | 2865 lbs
1299 kg |
Hydro Rear lift | 2080 lbs
943 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540/1000 (gear) |
540 (hydro) | |
Engine RPM | 540@2524 (gear) |
1000@2866 (gear) | |
540@2775 (hydro) | |
Mid PTO | independent (hydro only) |
Clutch | electro-hydraulic |
Mid PTO Type | 2000 |
Engine RPM | 2000@2650 |
Dimensions & Tires | |
|---|---|
Weight | 3064 to 3881 pounds |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
Charging amps | 50 |
Charging volts | 12 |
Battery volts | 12 |
Battery AH | 110 |
Engine
Engine Detail — 100.3 ci / 1.6 L Diesel
Manufacturer | Mahindra 3A135 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 100.3 ci
1.6 L |
Power | 34 hp
25.4 kW |
Fuel system | indirect injection |
Compression | 22:1 |
Rated RPM | 2700 |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed synchomesh shuttle | |
hydrostatic |
Transmission — 12 forward and reverse synchomesh shuttle
Type | synchomesh shuttle |
Gears | 12 forward and reverse |
Clutch | dry disc |
Transmission — infinite forward and reverse (3-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (3-range) |
Dimensions
Mahindra 3510 Tires |
|---|
Dimensions | |
|---|---|
Gear Length | 139 inches
353 cm |
Hydro Length | 114.2 inches
290 cm |
Gear Width | 58 inches
147 cm |
Hydro Width | 52 inches
132 cm |
Gear Weight | 3881 lbs
1760 kg |
Hydro Weight | 3064 lbs
1389 kg |
Attachments
Attachment overview | |
|---|---|
Mahindra ML108 loader | |
Mahindra ML112 loader |
Photos

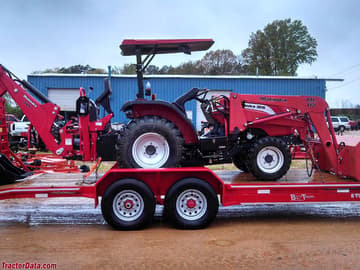

Mahindra 3810 with ML112 front-end loader and 509 backhoe, right side.
Mahindra 3810 with ML112 front-end loader and 509 backhoe, right side.
Recommended Implements & Sizing Guide
Engineering recommendations for Mahindra 3510 based on its 34 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm) | Medium Duty | Standard utility farm tillage. |
Rotary Cutter / MowerMowing & Clearing | 5 ft (60 in)1.5 m | Medium Duty | Pasture maintenance and weeds up to 1.5" diameter. |
Rotary TillerSeedbed Prep | 54 to 60 in135 - 150 cm | Medium Duty | Thorough seedbed preparation in orchards and vegetable plots. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 3510.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mahindra 3510 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 3510.
Converted Equivalents:
Horsepower (HP)34 hp
Kilowatts (kW)25.4 kW
Metric Horsepower (PS / CV)34.5 PS
Direct Competitor Comparison
Compare Mahindra 3510 against same-era industry alternatives in the same horsepower class.
Current Model
Mahindra
Mahindra 3510
Engine Power:Diesel (listed): 34 hp / 25.4 kW
★ Baseline Reference
