Mahindra 2015

The Mahindra 2015 is a tractor produced by Mahindra. It is equipped with a 68.6 ci 1.1 L engine. The rated power output is 20 hp 14.9 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1819 to 1973 pounds.

Overview

	2003 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Production
Distributor	Mahindra
Manufacturer	Mitsubishi
Compact Utility tractor

Mahindra 2015 Engine
Mitsubishi 1.1L 3-cyl diesel
Engine details ...

Mahindra 2015 Power
Engine	20 hp 14.9 kW
PTO (claimed)	17.5 hp (gear) 13.0 kW
	16 hp (hydro) 11.9 kW

Mechanical
Four-wheel drive
Steering	hydrostatic power
Dry shoe brakes
Two-post folding ROPS.

Hydraulics
Type	open center
Valves	1
Pump flow	5.8 gpm 22.0 lpm
Steering flow	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	1,400 lbs 635 kg

Power Take-off (PTO)
Rear PTO	transmission (gear)
	live (hydro)
Rear PTO Type	540
Engine RPM	540@2356
Mid PTO	optional
Mid PTO Type	2000
Engine RPM	2000@2470

Dimensions & Tires
Weight	1819 to 1973 pounds
Front tire	7x15
Rear tire	9.5x16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	50
Charging volts	12
Battery volts	12

Engine

	2003 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 68.6 ci / 1.1 L Diesel

Manufacturer	Mitsubishi S3L
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	68.6 ci 1.1 L
Bore/Stroke	3.071x3.091 inches 78 x 79 mm
Power	20 hp 14.9 kW
Fuel system	indirect injection
Compression	22:1
Rated RPM	2500
Starter volts	12

Transmission

	2003 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Transmission options
6-speed constant mesh
hydrostatic

Transmission — 6 forward and 2 reverse constant mesh

Type	constant mesh
Gears	6 forward and 2 reverse
Clutch	dry disc

Transmission — infinite forward and reverse (2-range) hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse (2-range)

Dimensions

	2003 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Mahindra 2015 Tires
Ag front	7x15
Ag rear	9.5x16
Lawn/turf front	23x8.5-12
Lawn/turf rear	33x12.5-16.5
Industrial front	23x8.5-12
Industrial rear	12x16.5

Dimensions
Length	106.5 inches 270 cm
Width	53.5 inches 135 cm
Gear Weight	1819 lbs 825 kg
Hydro Weight	1973 lbs 894 kg

Attachments

	2003 - 2008 15 SeriesCompact Utility tractorMitsubishi built
2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

2003 - 2008
15 Series
Compact Utility tractor
Mitsubishi built

Attachment overview
60" mid-mount mower deck
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Mahindra
Cutting width	60 inches 152 cm

Mahindra 1710C Backhoe
Backhoe type	Mahindra 1710C Backhoe

Mahindra 2710 Backhoe
Backhoe type	Mahindra 2710 Backhoe

Photos

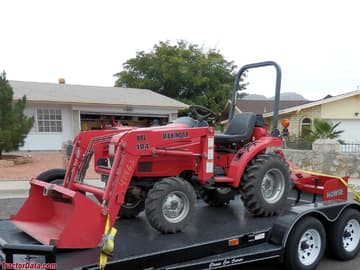

Mahindra 2015 with front-end loader and box blade.
