Mahindra 2516

The Mahindra 2516 is a tractor produced by Mahindra. It is equipped with a 80.4 ci 1.3 L engine. The listed engine power is Diesel (listed): 25 hp / 18.6 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 1819 to 1863 pounds.

Engine Power
Diesel (listed): 25 hp / 18.6 kW
Fuel & Capacities
Diesel
Transmission
infinite forward and reverse (2-range)
Operating Weight
1819 lbs 825 kg

Overview

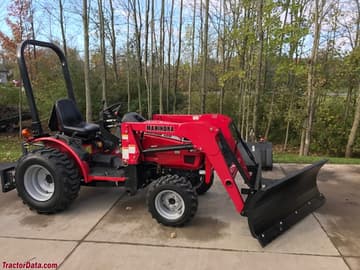

Mahindra 2516 tractor photo
2008 - ???? 16 SeriesCompact Utility tractorMitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
Production
Distributor
Mahindra
Manufacturer
Mitsubishi
Compact Utility tractor
Original price
$13,195 (2009 hydro )
$12,750 (2013 shuttle )
$13,688 (2013 hydro )
Mahindra 2516 Engine
Mitsubishi 1.3L 3-cyl diesel
Engine details ...
Mahindra 2516 Power
Engine
25 hp 18.6 kW
Hydro PTO (claimed)
21.5 hp 16.0 kW
Gear PTO (claimed)
20 hp 14.9 kW
Mechanical
Four-wheel drive
Steering
hydrostatic power
Wet disc brakes
Flat platform with folding ROPS
Hydraulics
Type
open center
Valves
0 or 1
Pump flow
5.8 gpm 22.0 lpm
Steering flow
2.7 gpm 10.2 lpm
Tractor hitch
Rear Type
I
Rear lift (at ends)
2,205 lbs 1000 kg
Power Take-off (PTO)
Rear PTO
live
Rear PTO Type
540
Mid PTO Type
2000
Dimensions & Tires
Weight
1819 to 1863 pounds
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
50
Battery volts
12
Battery AH
35

Engine

Mahindra 2516 tractor photo
2008 - ???? 16 SeriesCompact Utility tractorMitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built

Engine Detail — 80.4 ci / 1.3 L Diesel

Manufacturer
Mitsubishi S3L2
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
80.4 ci 1.3 L
Bore/Stroke
3.071x3.622 inches 78 x 92 mm
Power
25 hp 18.6 kW
Compression
22:1
Rated RPM
2500
Starter
electric
Starter volts
12

Transmission

Mahindra 2516 tractor photo
2008 - ???? 16 SeriesCompact Utility tractorMitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
Transmission options
8-speed shuttle
hydrostatic

Transmission — 8 forward and reverse shuttle

Type
shuttle
Gears
8 forward and reverse

Transmission — infinite forward and reverse (2-range) hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse (2-range)

Dimensions

Mahindra 2516 tractor photo
2008 - ???? 16 SeriesCompact Utility tractorMitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
Mahindra 2516 Tires
Industrial front
23x8.5-12
Industrial rear
12x16.5
Dimensions
Length
109.3 inches 277 cm
Width
54.3 inches 137 cm
Gear Operating weight
1819 lbs 825 kg
Hydro Operating weight
1863 lbs 845 kg

Attachments

Mahindra 2516 tractor photo
2008 - ???? 16 SeriesCompact Utility tractorMitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
2008 - ????
16 Series
Compact Utility tractor
Mitsubishi built
Attachment overview
60" mid-mount mower deck
Front-end loader
60" Mower deck
Type
mid-mount Mahindra
Cutting width
60 inches 152 cm

Photos

Mahindra 2516

Mahindra 2516

Recommended Implements & Sizing Guide

Engineering recommendations for Mahindra 2516 based on its 25 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
5 ft (60 in)1.5 mMedium DutyPasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep
54 to 60 in135 - 150 cmMedium DutyThorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage
5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)Light DutySmall acreage soil break-up and secondary aeration.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mahindra 2516.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Mahindra 2516 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mahindra 2516.

Converted Equivalents:

Horsepower (HP)25 hp
Kilowatts (kW)18.6 kW
Metric Horsepower (PS / CV)25.3 PS

Direct Competitor Comparison

Compare Mahindra 2516 against same-era industry alternatives in the same horsepower class.

Current Model
Mahindra

Mahindra 2516

Engine Power:Diesel (listed): 25 hp / 18.6 kW
★ Baseline Reference
Massey FergusonMarket Competitor

Massey Ferguson 1523

Engine Power:22.5
Production Years:2005 - 2010
View Full Specs→
KubotaMarket Competitor

Kubota B9200

Engine Power:22.5
Production Years:1986 - 1990
View Full Specs→
ChallengerMarket Competitor

Challenger MT225B

Engine Power:22.5
Production Years:2005 - 2008
View Full Specs→
AGCOMarket Competitor

AGCO ST22A

Engine Power:22.5
Production Years:2003 - 2008
View Full Specs→
