Mahindra 2540

The Mahindra 2540 is a tractor produced by Mahindra. It is equipped with a 166.7 ci 2.7 L engine. The rated power output is 40 hp 29.8 kW. Transmission: 12 forward and reverse. Operating weight: 1369 lbs 620 kg.

Overview

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Production
Distributor	Mahindra
Manufacturer	TYM
Compact Utility tractor
Original price was $23,220 in 2016

Mahindra 2540 Engine
Mahindra 2.7L 4-cyl diesel
Fuel tank	16 gal 60.6 L
Engine details ...

Mahindra 2540 Transmission
12-speed shuttle
Transmission details ...

Mahindra 2540 Power
Engine	40 hp 29.8 kW
PTO (claimed)	35 hp 26.1 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post foldable ROPS.

Hydraulics
Type	open center
Rear valves	1 or 2
Pump flow	8.2 gpm 31.0 lpm
Steering flow	4.5 gpm 17.0 lpm

Tractor hitch
Rear Type	I
Control	position control
Rear lift	2646 lbs 1200 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2650

Dimensions & Tires
Weight	3285 lbs 1490 kg
Front tire	8.3x16
Rear tire	12.4x24
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	45
Charging volts	12
Battery volts	12
Battery AH	96

Engine

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Engine Detail — 166.7 ci / 2.7 L Diesel

Manufacturer	Mahindra
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	166.7 ci 2.7 L
Bore/Stroke	3.50x4.33 inches 89 x 110 mm
Emissions	Tier IV
Power	40 hp 29.8 kW
Fuel system	direct injection
Compression	19.5:1
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Transmission — 12 forward and reverse shuttle

Type	shuttle
Gears	12 forward and reverse
Clutch	dry disc

Dimensions

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Mahindra 2540 Tires
Standard tires (ag)	Front: 8.3x16. Rear: 12.4x24
Industrial front	10-16.5
Industrial rear	43x16-20

Dimensions
Length	119.3 inches 303 cm
Width	59.8 inches 151 cm
Height (ROPS)	94.4 inches 239 cm
Weight	3285 lbs 1490 kg

Attachments

	2016 - 2500 SeriesCompact Utility tractorTYM built
2016 -
2500 Series
Compact Utility tractor
TYM built

2016 -
2500 Series
Compact Utility tractor
TYM built

Attachment overview
Front-end loader
Backhoe

Mahindra 2540B Backhoe
Backhoe type	Mahindra 2540B Backhoe
Weight	1369 lbs 620 kg
Transport height	81 inches 205 cm
Digging depth	92 inches 233 cm
2-Foot flat digging depth	90 inches 228 cm
Reach from pivot	112 inches 284 cm
Loading height	87 inches 220 cm
Bucket Rotation	140°
Swing Arc	180°
Bucket force	3080 lbs 1397 kg
Dipperstick force	2160 lbs 979 kg

Photos

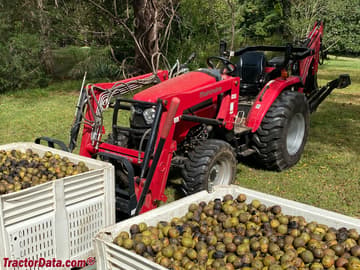

Mahindra 2540
