Massey Ferguson 1105

The Massey Ferguson 1105 is a tractor produced by Massey Ferguson. It is equipped with a 354 ci 5.8 L engine. The listed engine power is 110.72 hp 82.6 kW. Transmission: Multi-Power. Operating weight: 10750 to 12320 pounds.

Engine Power

110.72 hp 82.6 kW

Fuel & Capacities

55 gal 208.2 L

Transmission

Multi-Power

Operating Weight

10750 to 12320 pounds

Overview

	1973 - 1978 Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Original price was $20,000 in 1978

Massey Ferguson 1105 Engine
Perkins 5.8L 6-cyl diesel
Engine details ...

Massey Ferguson 1105 Power
Drawbar (claimed)	83 hp 61.9 kW
PTO (claimed)	111 hp 82.8 kW
Drawbar (tested)	83.52 hp 62.3 kW
PTO (tested)	110.72 hp 82.6 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Hydraulic disc brakes
Cab optional.

Capacity
Fuel	55 gal 208.2 L
Hydraulic system	22 gal 83.3 L

Hydraulics
Type	closed center
Capacity	22 gal 83.3 L
Pressure	2100 psi 144.8 bar
Pump flow	20 gpm 75.7 lpm

Tractor hitch
Rear Type	II/III
Control	position and draft control

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2000
	1000@2000

Dimensions & Tires
Wheelbase	109 inches 276 cm
Weight	10750 to 12320 pounds
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Charging system	alternator
Battery volts	12

References

Complete Farm Machinery Guide published in 1976, by Massey Ferguson

Engine

Engine Detail — 354 ci / 5.8 L Diesel

Manufacturer	Perkins ATC6.3541
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	354 ci 5.8 L
Bore/Stroke	3.875x5.00 inches 98 x 127 mm
Fuel system	direct injection
Air cleaner	dry
Compression	16:1
Rated RPM	2200
Starter volts	12
Oil capacity	16 qts 15.1 L
Coolant capacity	22 qts 20.8 L

Transmission

Transmission options
12-speed two-speed power shift
8-speed gear

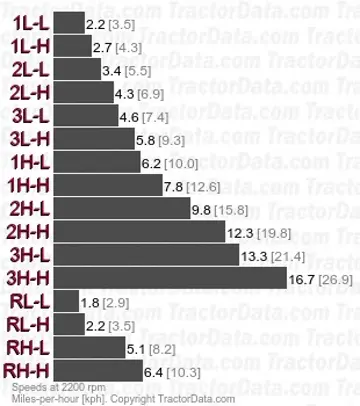

Transmission — Multi-Power

Transmission	Multi-Power
Type	two-speed power shift
Gears	12 forward and 4 reverse
Clutch	356mm dry disc
Three gears (1-3), plus reverse (R) in two ranges (low-high), with additional two-speed Multi-Power power shift.
With 18.4x38 rear tires.

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
With 18.4-38 rear tires.

Dimensions

Massey Ferguson 1105 Tires
Ag front	11.00-16
Ag rear	18.4-38

Dimensions
Wheelbase	109 inches 276 cm
Length	180 inches 457 cm
Clearance (front axle)	25 inches 63 cm
Clearance (drawbar)	16.1 inches 40 cm
Rear axle	3.25 by 94 inches 82 by 2387 mm
Rear axle	3.25 by 114 inches 82 by 2895 mm (long axle)
Front tread	61.4 to 86.4 inches 155 to 219 cm (row-crop)
Front tread	61.6 inches 156 cm (Western)
Rear tread	70 to 94 inches 177 to 238 cm
Rear tread	60 to 100 inches 152 to 254 cm (PAVT)
Rear tread	70 to 114 inches 177 to 289 cm (long axle)
Rear tread	60 to 120 inches 152 to 304 cm (long axle PAVT)

Massey Ferguson 1105 Weight
Shipping	10750 lbs 4876 kg
	12000 lbs (cab) 5443 kg
Operating	12,320 lbs 5588 kg
Ballasted	16,725 lbs 7586 kg

Massey Ferguson 1105 Height
Steering wheel	79 inches 200 cm
Hood	76.3 inches 193 cm
Cab	113.5 inches 288 cm

Tests

Nebraska Tractor Test 1132
Diesel MultiPower 2WD May 29 - June 8, 1973 Link: Nebraska Tractor Test 1132 file
PTO performance
Power at rated engine speed	110.72 hp 82.6 kW
Fuel use	7.5 gal/hour 28.4 l/hour
Power at rated PTO speed	96.43 hp 71.9 kW
Fuel use	6.2 gal/hour 23.5 l/hour
Drawbar performance
Max power	83.52 hp 62.3 kW
Fuel use	6.8 gal/hour 25.7 l/hour
Gear 3LL-MP used for power test.
Max pull	11365 lbs 5155 kg
Gear 1HL-MP used for pull test.

Attachments

Attachment overview
Massey Ferguson 245 loader
Massey Ferguson 245 High Lift loader

Photos

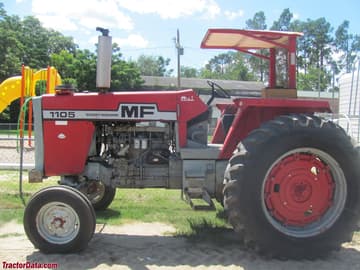

Open-station Massey Ferguson 1105.

Massey Ferguson 1105 with cab.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1105 based on its 110.72 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1105.

Estimated Continuous Field Runtime: 9.6 hrs

Approximately 9.6 hours of continuous field operation at ~75% rated power on a full tank (55 gal / 208.2 L).

Estimated 75% Load Fuel Burn~5.8 gal/hr (21.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
