Massey Ferguson 1145

The Massey Ferguson 1145 is a tractor produced by Massey Ferguson. It is equipped with a 91.4 ci 1.5 L engine. The listed engine power is Diesel (listed): 35 hp / 26.1 kW. Transmission: 16 forward and reverse. Operating weight: 2811 lbs 1275 kg.

Engine Power

Diesel (listed): 35 hp / 26.1 kW

Fuel & Capacities

8 gal 30.3 L

Transmission

16 forward and reverse

Operating Weight

2811 lbs 1275 kg

Overview

	1991 - 1992 1100 SeriesCompact Utility tractorIseki built 1100 Series Compact Utility tractor Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Original price was $16,000 in 1992

Massey Ferguson 1145 Engine
Isuzu 1.5L 3-cyl diesel
Engine details ...

Massey Ferguson 1145 Transmission
16-speed partially synchronized
Transmission details ...

Massey Ferguson 1145 Power
Engine	35 hp 26.1 kW
PTO (claimed)	31 hp 23.1 kW

Mechanical
Four-wheel drive
Power steering
Mechanical wet disc brakes
Two-post fixed ROPS.

Capacity
Fuel	8 gal 30.3 L
Hydraulic system	6.6 gal 25.0 L
Steering	2.8 qts 2.6 L

Hydraulics
Type	open center
Capacity	6.6 gal 25.0 L
Pressure	2133 psi 147.1 bar
Pump flow	6.9 gpm 26.1 lpm
Steering cap.	2.8 qts 2.6 L

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	2866 lbs 1300 kg
Rear lift (at 24"/610mm)	1785 lbs 809 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO	independent OptOptional
Mid PTO Type	1950 (1.00 15-spline)
Engine RPM	1960@2600

Dimensions & Tires
Wheelbase	67 inches 170 cm
Weight	2811 lbs 1275 kg
Front tire	8-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

1140/1145 30-35 Engine HP Compact Tractors published in 1991, by Massey Ferguson

Engine

Engine Detail — 91.4 ci / 1.5 L Diesel

Manufacturer	Isuzu E3AD1-HTO1
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled inline
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.385x3.385 inches 86 x 86 mm
Power	35 hp 26.1 kW
Fuel system	indirect injection
Air cleaner	dual dry element
Pre-heating	glow plugs
Rated RPM	2600
Torque	83.5 lb-ft 113.2 Nm
Torque RPM	1800
Firing order	1-3-2
Starter volts	12
Oil capacity	5.1 qts 4.8 L
Coolant capacity	7.2 qts 6.8 L

Transmission

Transmission — 16 forward and reverse partially synchronized

Type	partially synchronized
Gears	16 forward and reverse
Clutch	225mm dry disc
Four gears (1-4) in four ranges (1-4) with synchronized shuttle shifting. Gears three and four are synchronized.

Dimensions

Massey Ferguson 1145 Tires
Ag front	8-16
Ag rear	13.6-24

Dimensions
Wheelbase	67 inches 170 cm
Length	121 inches 307 cm
Width	56.1 inches 142 cm
Height (ROPS)	83.25 inches 211 cm
Operating weight	2811 lbs 1275 kg
Ground clearance	12.8 inches 32 cm

Photos

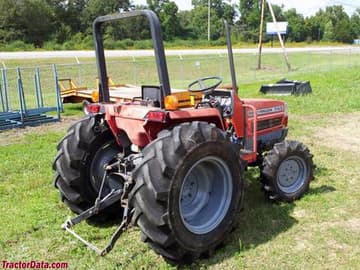

Massey Ferguson 1145

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 1145 based on its 35 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	5 ft (60 in)1.5 m	Medium Duty	Pasture maintenance and weeds up to 1.5" diameter.
Rotary TillerSeedbed Prep	54 to 60 in135 - 150 cm	Medium Duty	Thorough seedbed preparation in orchards and vegetable plots.
Disc HarrowSecondary Tillage	5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片)	Light Duty	Small acreage soil break-up and secondary aeration.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 1145.

Estimated Continuous Field Runtime: 4.4 hrs

Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (8 gal / 30.3 L).

Estimated 75% Load Fuel Burn~1.8 gal/hr (6.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
