Massey Ferguson 1429

The Massey Ferguson 1429 is a tractor produced by Massey Ferguson. It is equipped with a 89.3 ci 1.5 L engine. The rated power output is 28.4 hp 21.2 kW. Transmission: PowerShuttle. Operating weight: 2734 lbs 1240 kg.

Overview

	2002 - 2005 1400 SeriesCompact Utility tractorIseki built
2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Built in Matsuyama, Japan
Original price	$18,000

Massey Ferguson 1429 Engine
Iseki 1.5L 3-cyl diesel
Fuel tank	7.9 gal 29.9 L
Engine details ...

Massey Ferguson 1429 Transmission
8-speed
Transmission details ...

Massey Ferguson 1429 Power
Engine (gross)	28.4 hp 21.2 kW
PTO (claimed)	23 hp 17.2 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS. Soft-side weather cab optional.

Photos
Massey Ferguson 1429 photos...

Hydraulics
Type	open center
Pressure	2130 psi 146.9 bar
Pump flow	7.4 gpm 28.0 lpm
Total flow	11.7 gpm 44.3 lpm
Steering flow	4.3 gpm 16.3 lpm

Tractor hitch
Rear Type	I
Control	position and response control, draft control optional
Rear lift (at ends)	2756 lbs 1250 kg
Rear Arms	telescopic link ends and stabilizers

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	68.5 inches 173 cm
Weight	2734 lbs 1240 kg
Rear tire	11.2-24
Full dimensions and tires ...

Massey Ferguson 1429 attachments
72" mid-mount mower deck
snowblower
blade
front-end loader
backhoe
Attachment details ...

1429 Serial Numbers
2002	LF0001
2003	MF0001
2004	NF0001
2005	P0001
FAQ: How to read a serial number table.

Electrical
Ground	negative
Battery volts	12

References
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 1400 Series published in 2002, by Massey Ferguson
MF 1400 Series published in 2003, by Massey Ferguson

Engine

	2002 - 2005 1400 SeriesCompact Utility tractorIseki built
2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

Engine Detail
Iseki
diesel
3-cylinder
liquid-cooled
Displacement	89.3 ci 1.5 L
Emissions	Tier 2
Power (gross)	28.4 hp 21.2 kW
Fuel system	indirect injection
Rated RPM	2500
Starter volts	12

Transmission

	2002 - 2005 1400 SeriesCompact Utility tractorIseki built
2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

Transmission
Transmission	SynchroShuttle
Gears	8 forward and reverse
Clutch	dry disc

Transmission
Transmission	PowerShuttle
Gears	8 forward and reverse
Clutch	wet disc

Dimensions

	2002 - 2005 1400 SeriesCompact Utility tractorIseki built
2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

Massey Ferguson 1429 Tires
Ag rear	11.2-24
Industrial front	15-19.5

Dimensions
Wheelbase	68.5 inches 173 cm
Length	121.5 inches 308 cm
Width	54.9 inches (min) 139 cm
Height (ROPS)	85.8 inches 217 cm
Height (Folded ROPS)	69.9 inches 177 cm
Weight	2734 lbs 1240 kg
Front tread	42.9 inches 108 cm
Rear tread	43.3 to 55.9 inches 109 to 141 cm

Attachments

	2002 - 2005 1400 SeriesCompact Utility tractorIseki built
2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

2002 - 2005
1400 Series
Compact Utility tractor
Iseki built

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe
The Massey Ferguson 1429 was advertised as compatible with 60-inch rear rotary mowers, 72-inch rear finish mowers, 72-inch box blades, and 60-inch tillers.

72" Mower deck
Type	mid-mount Massey Ferguson 1432
	3-blade
Cutting width	72 inches 182 cm
Overall width	89.8 inches 228 cm
Cut height	2.0 to 4.0 inch 5 to 10 cm
Cut positions	5

Massey Ferguson 1480 Backhoe
Backhoe type	Massey Ferguson 1480 Backhoe
Digging depth	100 inches 254 cm
Reach from pivot	127 inches 322 cm
Bucket Rotation	165°
Swing Arc	180°
Bucket force	4160 lbs 1886 kg
Dipperstick force	2600 lbs 1179 kg

Photos

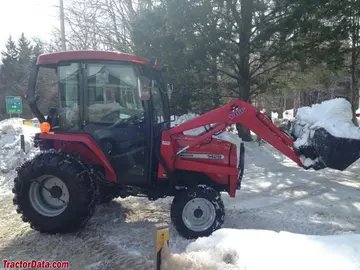

Massey Ferguson 1429 with MF1466 front-end loader and Simms cab.

Massey Ferguson 1429 with MF1466 front-end loader and Simms cab.
