Massey Ferguson 1240
The Massey Ferguson 1240 is a tractor produced by Massey Ferguson. It is equipped with a 89.3 ci 1.5 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: 16 forward and reverse. Operating weight: 2535 to 2645 pounds.
Engine Power
27.6 hp
20.6 kW
Fuel & Capacities
7.9 gal
29.9 L
Transmission
16 forward and reverse
Operating Weight
2535 to 2645 pounds
Massey Ferguson 1240 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Iseki |
Compact Utility tractor | |
Original price was $15,000 in 1999 | |
The Massey Ferguson 1240 is similar to the Iseki model TK527. | |
Variants | |
|---|---|
1240-2 | 2WD |
Massey Ferguson 1240 Engine | |
|---|---|
Iseki 1.5L 3-cyl diesel | |
Engine details ...  |
Massey Ferguson 1240 Transmission | |
|---|---|
16-speed synchro shuttle | |
Transmission details ...  |
Massey Ferguson 1240 Power | |
|---|---|
Engine (gross) | 28.4 hp
21.2 kW |
Engine (net) | 27.6 hp
20.6 kW |
PTO (claimed) | 22.8 hp
17.0 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Steering | power assist |
Wet disc brakes | |
Two-post folding ROPS. | |
Capacity | |
|---|---|
Fuel | 7.9 gal
29.9 L |
Hydraulic system | 6.1 gal
23.1 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 6.1 gal
23.1 L |
Pump flow | 6.0 gpm
22.7 lpm |
Total flow | 9.2 gpm
34.8 lpm |
Steering flow | 3.2 gpm
12.1 lpm |
Tractor hitch | |
|---|---|
Rear Type | I |
Control | position control |
Rear lift (at ends) | 2866 lbs
1300 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2389 |
Mid PTO | independent OptOptional |
Clutch | electro-hydraulic |
Mid PTO Type | 1885 |
Engine RPM | 1885@2500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 64.6 inches
164 cm |
Weight | 2535 to 2645 pounds |
Front tire | 5.00-15 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson | |
MF 1200 Series Tractors published in 1993, by Massey Ferguson | |
MF 1200 Series published in 1997, by Massey Ferguson | |
MF 1240-2/4WD published by Massey Ferguson |
Engine
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Engine Detail — 89.3 ci / 1.5 L Diesel
Manufacturer | Iseki E3CF |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 89.3 ci
1.5 L |
Bore/Stroke | 3.39x3.31 inches
86 x 84 mm |
Power (net) | 27.6 hp
20.6 kW |
Power (gross) | 28.4 hp
21.2 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Pre-heating | glow plugs |
Compression | 21.5:1 |
Rated RPM | 2500 |
Torque | 68.6 lb-ft
93.0 Nm |
Torque RPM | 1500 |
Starter volts | 12 |
Coolant capacity | 6.92 qts
6.5 L |
Transmission
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |

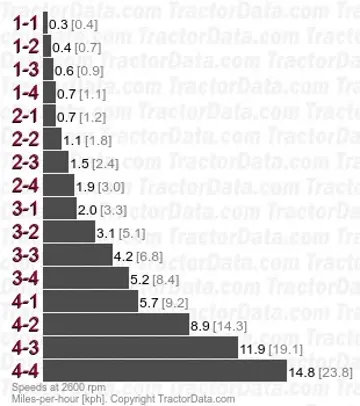

Transmission — 16 forward and reverse synchro shuttle
Type | synchro shuttle |
Gears | 16 forward and reverse |
Clutch | 225mm dry disc |
Four gears in four ranges with shuttle. | |
With 11.2-24 rear tires. Reverse speeds are 5% slower than forward. | |
 | |
Dimensions
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Massey Ferguson 1240 Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 64.6 inches
164 cm |
Length | 118.7 inches
301 cm |
Width | 55.1 inches (min)
139 cm |
Height (ROPS) | 84.2 inches
213 cm |
Height (Folded ROPS) | 67.7 inches
171 cm |
2WD Shipping weight | 2535 lbs
1149 kg |
4WD Shipping weight | 2645 lbs
1199 kg |
Ground clearance | 11.8 inches
29 cm |
2WD Front tread | 37.5 to 41.7 inches
95 to 105 cm |
4WD Front tread | 41.7 inches
105 cm |
Rear tread | 43.3 to 55.9 inches
109 to 141 cm |
Attachments
| 1992 - 2002
1200 Compact SeriesCompact Utility tractorIseki built |
|---|---|
1992 - 2002 | |
1200 Compact Series | |
Compact Utility tractor | |
Iseki built | |
1992 - 2002 | |
|---|---|
1200 Compact Series | |
Compact Utility tractor | |
Iseki built |
Attachment overview | |
|---|---|
60" mid-mount mower deck | |
72" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
Backhoe |
Massey Ferguson 1217 Backhoe | |
|---|---|
Backhoe type | Massey Ferguson 1217 Backhoe |
Photos
Massey Ferguson 1240 with cab and blade.
Massey Ferguson 1240 with loader and rear snowblower.
