Massey Ferguson 4283

The Massey Ferguson 4283 is a tractor produced by Massey Ferguson. It is equipped with a 250 ci 4.1 L engine. The rated power output is 85 hp 63.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 8708 to 10646 pounds.

Overview

	2010 - 2020 4200 Latin America SeriesRow-Crop tractor
2010 - 2020
4200 Latin America Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Row-Crop tractor
Built in Canoas, Brazil

Massey Ferguson 4283 Engine
MWM 4.1L 4-cyl diesel
Engine details ...

Massey Ferguson 4283 Power
Engine	85 hp 63.4 kW
PTO (claimed)	72 hp 53.7 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Hydraulic wet disc brakes
Two-post fixed ROPS. Cab optional.

Capacity
Fuel	25.1 gal 95.0 L
Hydraulic system	11.1 gal 42.0 L

Hydraulics
Capacity	11.1 gal 42.0 L
Pressure	2466 psi 170.0 bar
Valves	2 or 3
Pump flow	15.9 gpm 60.2 lpm
	18.2 gpmOptOptional 68.9 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Clutch	dry disc
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1900
	1000@1900

Dimensions & Tires
Wheelbase	89.8 inches 228 cm
Weight	8708 to 10646 pounds
Front tire	9.00-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	55
Cab Charging amps	120
Battery volts	12

References
Series 4200 published in 2010, by Massey Ferguson
MF4283 published in 2011, by Massey Ferguson

Engine

Engine Detail — 250 ci / 4.1 L Diesel

Manufacturer	MWM A4-4.1
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
Displacement	250 ci 4.1 L
Bore/Stroke	3.98x5.00 inches 101 x 127 mm
Power	85 hp 63.4 kW
Rated RPM	2200
Torque	213 lb-ft 288.8 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Oil capacity	8.5 qts 8.0 L

Transmission

Transmission options
8-speed gear
8-speed shuttle
12-speed gear

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	dry disc
With 18.4-30 rear tires.

Transmission — 8 forward and reverse shuttle

Type	shuttle
Gears	8 forward and reverse
Clutch	dry disc
With 18.4-30 rear tires. Reverse speeds are 15% faster than forward.

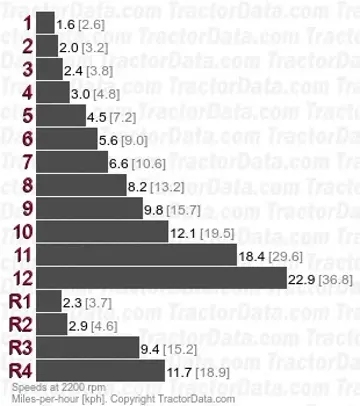

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc
With 18.4-30 rear tires.

Dimensions

Massey Ferguson 4283 Tires
Standard tires (ag)	Front: 9.00-16. Rear: 18.4-34

Dimensions
Wheelbase	89.8 inches 228 cm
2WD Length	156.5 inches 397 cm
4WD Length	164.2 inches 417 cm
Height	102.4 inches 260 cm
2WD Weight	8708 lbs 3949 kg
4WD Weight	10646 lbs 4829 kg
Ground clearance	15 inches 38 cm
Rear tread	56.9 to 85.3 inches 144 to 216 cm

Photos

Massey Ferguson 4283 tractor photo
