Massey Ferguson 1529

The Massey Ferguson 1529 is a tractor produced by Massey Ferguson. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 27.6 hp 20.6 kW. Transmission: SynchroShuttle. Operating weight: 2579 lbs 1169 kg.

Overview

	2007 - 2014 Model year 2007-20102011-2014 1500 SeriesCompact Utility tractorIseki built
2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Built in Matsuyama, Japan
Original price was $13,468 in 2008

Massey Ferguson 1529 Engine
Iseki 1.5L 3-cyl diesel
Engine details ...

Massey Ferguson 1529 Transmission
8-speed
Transmission details ...

Massey Ferguson 1529 Power
Engine (gross)	28.4 hp 21.2 kW
Engine (net)	27.6 hp 20.6 kW
PTO (claimed)	23.2 hp 17.3 kW

Mechanical
Four-wheel drive
Power steering
Wet disc brakes
Two-post folding ROPS.

Photos
Massey Ferguson 1529 photos...

Capacity
Fuel	8.3 gal 31.4 L
Front axle	5.1 qts 4.8 L

Hydraulics
Type	open center
Valves	1 or 2
Pump flow	7.4 gpm 28.0 lpm
Total flow	10.8 gpm 40.9 lpm
Steering flow	3.4 gpm 12.9 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	2425 lbs 1099 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	66.7 inches 169 cm
Weight	2579 lbs 1169 kg
Front tire	7x14
Rear tire	11.2x24
Full dimensions and tires ...

Massey Ferguson 1529 attachments
front-end loader
backhoe
Attachment details ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery volts	12

References
1500 Series Compact Tractors published in 2007, by Massey Ferguson

Engine

	2007 - 2014 Model year 2007-20102011-2014 1500 SeriesCompact Utility tractorIseki built
2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

Engine Detail
Iseki
diesel
3-cylinder
liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.43x3.31 inches 87 x 84 mm
Power (net)	27.6 hp 20.6 kW
Power (gross)	28.4 hp 21.2 kW
Air cleaner	dry
Rated RPM	2500
Torque	67.3 lb-ft 91.3 Nm
Torque RPM	1500
Starter	electric
Starter volts	12
Oil capacity	3.3 qts 3.1 L
Coolant capacity	6.5 qts 6.2 L

Transmission

	2007 - 2014 Model year 2007-20102011-2014 1500 SeriesCompact Utility tractorIseki built
2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

Transmission
Transmission	SynchroShuttle
Gears	8 forward and reverse
Oil capacity	36 qts 34.1 L

Dimensions

	2007 - 2014 Model year 2007-20102011-2014 1500 SeriesCompact Utility tractorIseki built
2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

Massey Ferguson 1529 Tires
Standard tires (ag)	Front: 7x14. Rear: 11.2x24
Lawn/turf front	27x8.50-15
Lawn/turf rear	41x14.00-20
Industrial front	25x8.50-14
Industrial rear	15.00x19.5

Dimensions
Wheelbase	66.7 inches 169 cm
Length	120.7 inches 306 cm
Width	58.1 inches 147 cm
Height (ROPS)	97 inches 246 cm
Ground clearance	10.4 inches 26 cm
Front tread	33 inches 83 cm
Rear tread	43 inches 109 cm

Massey Ferguson 1529 Weight
Shipping	2579 lbs 1169 kg
Max capacity	5291 lbs 2399 kg
Max front axle	2646 lbs 1200 kg
Max rear axle	2866 lbs 1300 kg

Attachments

	2007 - 2014 Model year 2007-20102011-2014 1500 SeriesCompact Utility tractorIseki built
2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

2007 - 2014
Model year 2007-20102011-2014
1500 Series
Compact Utility tractor
Iseki built

Attachment overview
Front-end loader
Backhoe

Massey Ferguson 1570 Backhoe
Backhoe type	Massey Ferguson 1570 Backhoe
Digging depth	78 inches 198 cm
Reach from pivot	102 inches 259 cm
Bucket force	2,400 lbs 1088 kg
Dipperstick force	1,450 lbs 657 kg

Photos

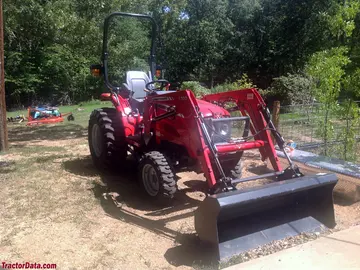

Massey Ferguson 1529 with L100 front-end loader.

Massey Ferguson 1529 with L100 front-end loader.
