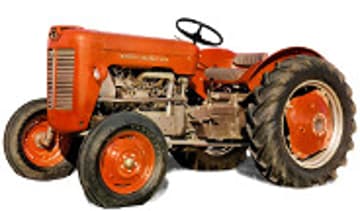

Massey Ferguson 25

The Massey Ferguson 25 is a tractor produced by Massey Ferguson. It is equipped with a 107 ci 1.8 L engine. The rated power output is 25 hp 18.6 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3115 lbs 1412 kg.

Overview

	1963 - 1965 Utility tractor
1963 - 1965
Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France
Original price was $2,545 in 1965
The Massey Ferguson 825 is the designation for the version of the model 25 sold in France.

Massey Ferguson 25 Engine
Perkins 1.8L 4-cyl diesel
Fuel tank	12 gal 45.4 L
Engine details ...

Massey Ferguson 25 Transmission
8-speed gear
Transmission details ...

Massey Ferguson 25 Power
Engine	25 hp 18.6 kW
PTO (claimed)	24 hp 17.9 kW
Plows	2
Drawbar (tested)	20.06 hp 15.0 kW
PTO (tested)	24.39 hp 18.2 kW
Performance test details ...

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Manual steering
Mechanical shoe brakes
Open operator station.

Hydraulics
Type	open center
Pressure	2000 psi 137.9 bar

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO	live *Two-stage foot clutch.
Clutch	228.6mm dry disc
Rear PTO Type	540
Engine RPM	540@1890

Dimensions & Tires
Wheelbase	72 inches 182 cm
Weight	2600 to 3115 pounds
Front tire	5.50-16
Rear tire	10-28
Full dimensions and tires ...

References
MF 25 Diesel Tractor published in 1963, by Massey Ferguson
Installation & Operation of Basic & Auxiliary Hydraulic Systems (690 562 M2) published in 1968

Engine

Engine Detail — 107 ci / 1.8 L Diesel

Manufacturer	Perkins A4-107
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	107 ci 1.8 L
Bore/Stroke	3.125x3.50 inches 79 x 89 mm
Power	25 hp 18.6 kW
Air cleaner	oil bath
Compression	22.5:1
Rated RPM	2000
Torque	75 lb-ft 101.7 Nm
Torque RPM	1200
Starter volts	12

Transmission

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	279.4mm dry disc
With 10x28 rear tires.

Dimensions

Massey Ferguson 25 Tires
Ag front	5.50-16
Ag rear	10-28

Dimensions
Wheelbase	72 inches 182 cm
Height (steering wheel)	56 inches 142 cm
Height (hood)	50 inches 127 cm
Weight	3115 lbs 1412 kg
Shipping weight	2600 lbs 1179 kg
Clearance (front axle)	20 inches 50 cm
Clearance (rear axle)	19 inches 48 cm
Front tread	48 to 72 inches 121 to 182 cm
Rear tread	48 to 76 inches 121 to 193 cm

Tests

Nebraska Tractor Test 854
Diesel 8-speed 2WD October 11 - 16, 1963 Link: Nebraska Tractor Test 854 file
PTO performance
Power at rated engine speed	24.39 hp 18.2 kW
Fuel use	1.7 gal/hour 6.4 l/hour
Power at rated PTO speed	540 hp 402.7 kW
Fuel use	36.1 gal/hour 136.6 l/hour
Drawbar performance
Max power	20.06 hp 15.0 kW
Fuel use	1.6 gal/hour 6.1 l/hour
Gear 5 used for power test.
Max pull	3178 lbs 1441 kg
Gear 3 used for pull test.

Photos

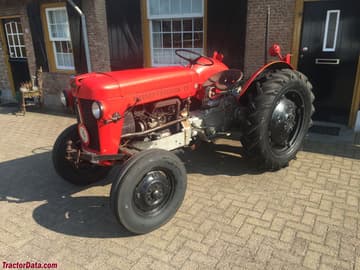

Massey Ferguson 25
