Massey Ferguson 292

The Massey Ferguson 292 is a tractor produced by Massey Ferguson. It is equipped with a 250 ci 4.1 L engine. The rated power output is 105 hp 78.3 kW. Transmission: 12 forward and 4 reverse. Operating weight: 6819 to 7180 pounds.

Overview

	1994 - 2005 Row-Crop tractor
1994 - 2005
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in Canoas, Brazil

Massey Ferguson 292 Engine
Perkins 4.1L 4-cyl diesel
Engine details ...

Massey Ferguson 292 Transmission
12-speed gear
Transmission details ...

Massey Ferguson 292 Power
Engine	105 hp 78.3 kW
PTO (claimed)	93.5 hp 69.7 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Mechanical wet disc brakes
Two-post fixed ROPS.

Hydraulics
Pump flow	11.1 gpm 42.0 lpm

Tractor hitch
Rear lift	7055 lbs 3200 kg

Power Take-off (PTO)
Rear PTO	live
	independent OptOptional
Clutch	mechanical (live)
	hydraulic (independent)
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1683
	1000@1683

Dimensions & Tires
2WD Wheelbase	90 inches 228 cm
4WD Wheelbase	93.3 inches 236 cm
Weight	6819 to 7180 pounds
Front tire	9.00-16
2WD Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery volts	12
Battery AH	90

References
MF 292 published in 1994, by Massey Ferguson

Engine

Engine Detail — 250 ci / 4.1 L Diesel

Manufacturer	Perkins 4000T
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	250 ci 4.1 L
Bore/Stroke	3.98x5.00 inches 101 x 127 mm
Power	105 hp 78.3 kW
Fuel system	direct injection
Air cleaner	dry
Compression	17.5:1
Rated RPM	2200
Torque	297 lb-ft 402.7 Nm
Torque RPM	1400
Starter	electric
Starter volts	12

Transmission

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse

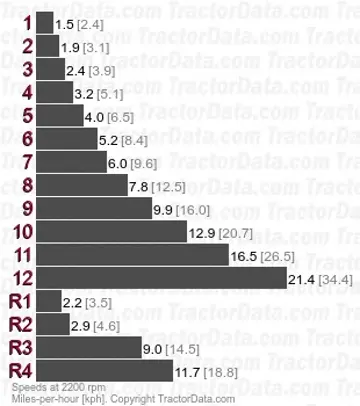

With 18.4-34 rear tires.

Dimensions

Massey Ferguson 292 Tires
2WD Standard tires (ag)	Front: 9.00-16. Rear: 18.4-34
4WD Standard tires (ag)	Front: 14.9-24. Rear: 18.4-34
2WD Optional tires (ag)	Front: 9.00-16. Rear: 23.1-26
2WD Optional tires (ag)	Front: 10.00-16. Rear: 23.1-30
4WD Optional tires (ag)	Front: 14.9-24. Rear: 23.1-26
4WD Optional tires (ag)	Front: 14.9-26. Rear: 23.1-30
4WD Optional tires (ag)	Front: 14.9-28. Rear: 23.1-30

Dimensions
2WD Wheelbase	90 inches 228 cm
4WD Wheelbase	93.3 inches 236 cm
2WD Length	144.5 inches 367 cm
4WD Length	150.8 inches 383 cm
Width	78.4 inches 199 cm
Height (ROPS)	104.9 inches 266 cm
Rear tread	60 to 91.9 inches 152 to 233 cm

Massey Ferguson 292 Weight
2WD	6819 lbs 3093 kg
4WD	7180 lbs 3256 kg
2WD Ballasted	9524 lbs 4320 kg
4WD Ballasted	13228 lbs 6000 kg

Photos

Massey Ferguson 292
