Massey Ferguson 3115

The Massey Ferguson 3115 is a tractor produced by Massey Ferguson. It is equipped with a 365 ci 6.0 L engine. The rated power output is 115 hp 85.8 kW. Transmission: Dynashift. Operating weight: 10,230 lbs 4640 kg.

Overview

	1990 - 1993 3100 SeriesRow-Crop tractor
1990 - 1993
3100 Series
Row-Crop tractor

Production
Manufacturer	Massey Ferguson
Row-Crop tractor
Built in Beauvais, France

Massey Ferguson 3115 Engine
Perkins 6.0L 6-cyl diesel
Fuel tank	47 gal 177.9 L
Engine details ...

Massey Ferguson 3115 Power
Engine	115 hp 85.8 kW

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Hydraulics
Pressure	2610 psi 180.0 bar
Pump flow	13.21 gpm 50.0 lpm

Tractor hitch
Rear Type	II
Rear lift	14330 lbs 6500 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
2WD Wheelbase	106.1 inches 269 cm
4WD Wheelbase	106.3 inches 270 cm
Weight	10,230 lbs 4640 kg
Front tire	11.00-16
2WD Rear tire	18.4-38
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
Battery volts	12

References
3100/3600 series published in 1991, by Massey Ferguson
Perkins 1000 Series with Quadram Power published in 1990, by Massey Ferguson

Engine

Engine Detail — 365 ci / 6.0 L Diesel

Manufacturer	Perkins Quadram 1000
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	365 ci 6.0 L
Bore/Stroke	3.94x5.00 inches 100 x 127 mm
Power	115 hp 85.8 kW
Rated RPM	2200
Torque	321.6 lb-ft 436.1 Nm
Torque RPM	1100
Starter	electric
Starter volts	12

Transmission

Transmission options
16-speed
32-speed four-speed power shift

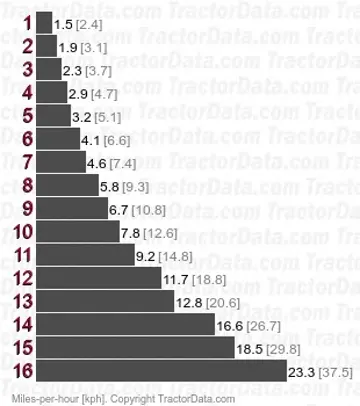

Transmission — 16 forward and reverse

Gears	16 forward and reverse

Transmission — Dynashift

Transmission	Dynashift
Type	four-speed power shift
Gears	32 forward and reverse
The Dynashift became available on the 3115 beginning in 1992.

Dimensions

Massey Ferguson 3115 Tires
2WD Standard tires (ag)	Front: 11.00-16. Rear: 18.4-38
4WD Standard tires (ag)	Front: 14.9R28. Rear: 18.4R38

Dimensions
2WD Wheelbase	106.1 inches 269 cm
4WD Wheelbase	106.3 inches 270 cm
2WD Length	178.5 inches 453 cm
4WD Length	180.5 inches 458 cm
Weight	10,230 lbs 4640 kg

Massey Ferguson 3115 Height
Steering wheel	82.3 inches 209 cm
Cab	109.3 inches 277 cm
Exhaust	109.2 inches 277 cm

Photos

Massey Ferguson 3115 tractor photo
