Massey Ferguson 4290
The Massey Ferguson 4290 is a tractor produced by Massey Ferguson. It is equipped with a 250 ci 4.1 L engine. The rated power output is 85 hp 63.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 10042 to 11927 pounds.
Engine Power
85 hp
63.4 kW
Fuel & Capacities
26.4 gal
99.9 L
Transmission
12 forward and 4 reverse
Operating Weight
10042 to 11927 pounds
Massey Ferguson 4290 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 2010 - 2020
4200 Latin America SeriesRow-Crop tractor |
|---|---|
2010 - 2020 | |
4200 Latin America Series | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Massey Ferguson (a part of AGCO) |
Row-Crop tractor | |
Built in Canoas, Brazil | |
Massey Ferguson 4290 Engine | |
|---|---|
MWM 4.1L 4-cyl diesel | |
Engine details ...  |
Massey Ferguson 4290 Power | |
|---|---|
Engine | 85 hp
63.4 kW |
PTO (claimed) | 72 hp
53.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Final drives | planetary |
Differential lock | mechanical rear |
Power steering | |
Hydraulic wet disc brakes | |
Two-post fixed ROPS. Cab optional. | |
Capacity | |
|---|---|
Fuel | 26.4 gal
99.9 L |
Hydraulic system | 11.9 gal
45.0 L |
Hydraulics | |
|---|---|
Capacity | 11.9 gal
45.0 L |
Pressure | 2466 psi
170.0 bar |
Valves | 2 or 3 |
Pump flow | 15.9 gpm
60.2 lpm |
18.2 gpmOptOptional
68.9 lpm | |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | dry disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1900 |
1000@1900 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 88.2 inches
224 cm |
4WD Wheelbase | 93.7 inches
237 cm |
Weight | 10042 to 11927 pounds |
Front tire | 14.9-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 55 |
Cab Charging amps | 120 |
Battery volts | 12 |
References | |
|---|---|
 | |
MF4290 published in 2010, by Massey Ferguson |
Engine
Engine Detail — 250 ci / 4.1 L Diesel
Manufacturer | MWM A4-4.1 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled inline |
Displacement | 250 ci
4.1 L |
Bore/Stroke | 3.98x5.00 inches
101 x 127 mm |
Power | 85 hp
63.4 kW |
Rated RPM | 2200 |
Torque | 213 lb-ft
288.8 Nm |
Torque RPM | 1400 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 8.5 qts
8.0 L |
Transmission
Transmission options | |
|---|---|
8-speed gear | |
8-speed shuttle | |
12-speed gear |
Transmission — 8 forward and 2 reverse gear
Type | gear |
Gears | 8 forward and 2 reverse |
Clutch | dry disc |
Transmission — 8 forward and reverse shuttle
Type | shuttle |
Gears | 8 forward and reverse |
Clutch | dry disc |

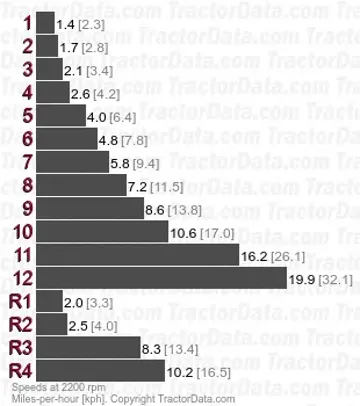

Transmission — 12 forward and 4 reverse gear
Type | gear |
Gears | 12 forward and 4 reverse |
Clutch | dry disc |
With 18.4-34 rear tires. | |
 | |
Dimensions
Massey Ferguson 4290 Tires | |
|---|---|
Standard tires (ag) | Front: 14.9-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 88.2 inches
224 cm |
4WD Wheelbase | 93.7 inches
237 cm |
2WD Length | 160.2 inches
406 cm |
4WD Length | 168.1 inches
426 cm |
Height | 102.4 inches
260 cm |
2WD Weight | 10042 lbs
4555 kg |
4WD Weight | 11927 lbs
5410 kg |
Ground clearance | 15 inches
38 cm |
Rear tread | 61.4 to 85.2 inches
155 to 216 cm |
Photos
Massey Ferguson 4290 tractor photo
