Massey Ferguson 4335

The Massey Ferguson 4335 is a tractor produced by Massey Ferguson. It is equipped with a 258.3 ci 4.2 L engine. The listed engine power is Diesel (net): 74 hp / 55.2 kW; Diesel (gross): 78 hp / 58.2 kW. Transmission: 12 forward and reverse. Operating weight: 6211 to 8170 pounds.

Overview

	2001 - 2003 4300 SeriesUtility tractor 4300 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Coventry, England

Massey Ferguson 4335 Engine
Perkins 4.2L 4-cyl diesel
Cab Fuel tank	33.6 gal 127.2 L
ROPS Fuel tank	34.3 gal 129.8 L
Cab Fuel tank	50 galOptOptional 189.2 L
ROPS Fuel tank	52.8 galOptOptional 199.8 L
Engine details ...

Massey Ferguson 4335 Power
Engine (gross)	78 hp 58.2 kW
Engine (net)	74 hp 55.2 kW
PTO (claimed)	65 hp 48.5 kW
Drawbar (tested)	60.2 hp 44.9 kW
PTO (tested)	68.4 hp 51.0 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Independent hydraulic wet disc brakes
Two-post folding ROPS. Cab optional with air-conditioning.

Hydraulics
Type	open center
Pressure	3046 psi 210.0 bar
Valves	2 to 4
SCV flow	10 gpm 37.9 lpm
	14.4 gpm*Combined flow with 540 PTO 54.5 lpm
	17.2 gpm*Combined flow with 540/1000 PTO 65.1 lpm
	17.4 gpm*Optional dedicated flow with power shuttle 65.9 lpm

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift (at 24"/610mm)	3665 lbs 1662 kg
	4495 lbsOptOptional 2038 kg
Rear Arms	telescopic lower links

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic wet disc
Rear PTO Type	540 (1.375)
	540/1000 (1.375)
Engine RPM	540@1789
	540@1902 *Dual-speed
	1000@2000

Dimensions & Tires
Wheelbase	93 inches 236 cm
Weight	6211 to 8170 pounds
Front tire	10.00-16
2WD Rear tire	480/70R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
ROPS Charging amps	45
Cab Charging amps	80
Cab Charging amps	120 OptOptional
Batteries	2
Battery CCA	590
Battery volts	12

References
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
4300 Series Tractors published in 2001, by Massey Ferguson
4300 Series Tractors published in 2002, by Massey Ferguson

Engine

Engine Detail — 258.3 ci / 4.2 L Diesel

Manufacturer	Perkins 1004.42
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	258.3 ci 4.2 L
Bore/Stroke	4.055x5.00 inches 103 x 127 mm
Rated Power (net)	74 hp 55.2 kW
Power (gross)	78 hp 58.2 kW
Air cleaner	dual paper elements
Pre-heating	thermostart
Compression	17.3:1
Rated RPM	2200
Torque	208 lb-ft 282.0 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Coolant capacity	18.4 qts 17.4 L

Transmission

Transmission options
8-speed gear
12-speed gear
12-speed mechanical shuttle
12-speed power shuttle

Transmission — 8 forward and 2 reverse gear

Type	gear
Gears	8 forward and 2 reverse
Clutch	dry disc

Transmission — 12 forward and 4 reverse gear

Type	gear
Gears	12 forward and 4 reverse
Clutch	dry disc

Transmission — 12 forward and reverse mechanical shuttle

Type	mechanical shuttle
Gears	12 forward and reverse
Clutch	dry disc
Also available as an 8-speed shuttle on ROPS-equipped models.

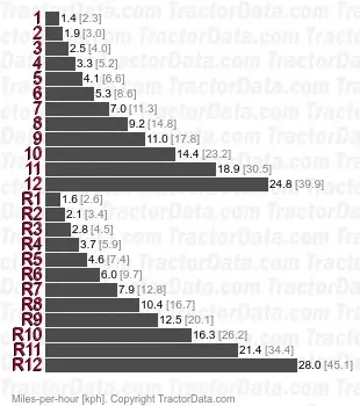

Transmission — 12 forward and reverse power shuttle

Type	power shuttle
Gears	12 forward and reverse
Clutch	wet disc

Dimensions

Massey Ferguson 4335 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 480/70R34
4WD Standard tires (ag)	Front: 380/70R24. Rear: 480/70R34

Dimensions
Wheelbase	93 inches 236 cm
Length	163 inches 414 cm
Width	77 inches 195 cm
Ground clearance	14 inches 35 cm
2WD Front tread	52 to 76 inches 132 to 193 cm
4WD Front tread	55 to 75 inches 139 to 190 cm
Rear tread	56 to 84 inches 142 to 213 cm

Massey Ferguson 4335 Weight
2WD ROPS	6211 lbs 2817 kg
4WD ROPS	6546 lbs 2969 kg
2WD Cab	7619 lbs 3455 kg
4WD Cab	8170 lbs 3705 kg
Operating	6,935 lbs 3145 kg

Massey Ferguson 4335 Height
Steering wheel	71 inches 180 cm
ROPS	103 inches 261 cm
Cab	100 inches 254 cm

Tests

OCED Tractor Test 1950
Diesel 12-speed 4WD October 1 - December 1, 2000 Link: OCED Tractor Test 1950 file
PTO performance
Power at rated engine speed	68.4 hp 51.0 kW
Fuel use	4.3 gal/hour 16.3 l/hour
Power at rated PTO speed	64.8 hp 48.3 kW
Fuel use	3.8 gal/hour 14.4 l/hour
Drawbar performance
Max power	60.2 hp 44.9 kW
Fuel use	4.3 gal/hour 16.3 l/hour
Gear 3M used for power test.
Max pull	6970 lbs 3161 kg
Gear 2L used for pull test.

Photos

Massey Ferguson 4335 tractor photo
