Massey Ferguson 5285

The Massey Ferguson 5285 is a tractor produced by Massey Ferguson. It is equipped with a 250.2 ci 4.1 L engine. The listed engine power is Diesel (listed): 85 hp / 63.4 kW. Transmission: 12 forward and 4 reverse. Operating weight: 7495 to 7826 pounds.

Engine Power

Diesel (listed): 85 hp / 63.4 kW

Fuel & Capacities

26.4 gal 99.9 L

Transmission

12 forward and 4 reverse

Operating Weight

7495 to 7826 pounds

Overview

	2002 - 2009 5000 SeriesUtility tractor 5000 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Canoas, Brazil

Massey Ferguson 5285 Engine
Perkins 4.1L 4-cyl diesel
Engine details ...

Massey Ferguson 5285 Transmission
12-speed
Transmission details ...

Massey Ferguson 5285 Power
Engine	85 hp 63.4 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	mechanical rear
Power steering
Wet disc brakes
Two-post ROPS.

Capacity
Fuel	26.4 gal 99.9 L
Hydraulic system	10 gal 37.9 L

Hydraulics
Type	open center
Capacity	10 gal 37.9 L
Pressure	2176 psi 150.0 bar
Valves	0 to 2
Total flow	11.1 gpm 42.0 lpm

Tractor hitch
Rear Type	II
Control	position and depth control
Rear lift	4630 lbs 2100 kg
	5512 lbsOptOptional 2500 kg

Power Take-off (PTO)
Rear PTO	transmission
	live *Optional, dual clutch.
	independent OptOptional
Clutch	254mm dry disc
Rear PTO Type	540 (1.375)
Engine RPM	540@1900

Dimensions & Tires
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	83.4 inches 211 cm
Weight	7495 to 7826 pounds
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	35
Battery volts	12
Battery AH	90

Engine

Engine Detail — 250.2 ci / 4.1 L Diesel

Manufacturer	Perkins 4.41
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	250.2 ci 4.1 L
Bore/Stroke	3.98x5.00 inches 101 x 127 mm
Power	85 hp 63.4 kW
Air cleaner	dual element dry
Rated RPM	2200
Torque	212.4 lb-ft 288.0 Nm
Torque RPM	1200
Starter	electric
Starter volts	12
Oil capacity	10 qts 9.5 L

Transmission

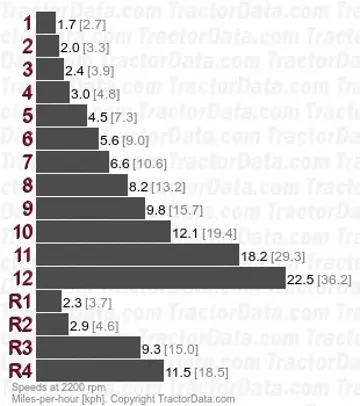

Transmission — 12 forward and 4 reverse

Gears	12 forward and 4 reverse
Clutch	305mm dry disc
	330mm dry disc OptOptional
With 18.4-34 rear tires.

Dimensions

Massey Ferguson 5285 Tires

Dimensions
2WD Wheelbase	83.9 inches 213 cm
4WD Wheelbase	83.4 inches 211 cm
Length	157.1 inches 399 cm
Height	104 inches 264 cm
2WD Weight	7495 lbs 3399 kg
4WD Weight	7826 lbs 3549 kg
2WD Ground clearance	14.2 inches 36 cm
4WD Ground clearance	13.4 inches 34 cm
2WD Front tread	51.2 to 82.7 inches 130 to 210 cm
4WD Front tread	64.8 to 80.3 inches 164 to 203 cm
Rear tread	61.4 to 85.2 inches 155 to 216 cm

Photos

Massey Ferguson 5285 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 5285 based on its 85 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 5285.

Estimated Continuous Field Runtime: 6 hrs

Approximately 6 hours of continuous field operation at ~75% rated power on a full tank (26.4 gal / 99.9 L).

Estimated 75% Load Fuel Burn~4.4 gal/hr (16.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
