Massey Ferguson 5445

The Massey Ferguson 5445 is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The rated power output is 85 hp 63.4 kW. Transmission: Dyna-4. Operating weight: 8630 to 9305 pounds.

Overview

	2004 - 2013 Model year 2004-20082008-2013 5400 SeriesUtility tractor
2004 - 2013
Model year 2004-20082008-2013
5400 Series
Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Massey Ferguson 5445 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	40 gal 151.4 L
	53.2 gal*Total capacity with optional tank. 201.4 L
Engine details ...

Massey Ferguson 5445 Transmission
16-speed
Transmission details ...

Massey Ferguson 5445 Power
Engine	85 hp 63.4 kW
Drawbar (claimed)	61 hp 45.5 kW
PTO (claimed)	70 hp 52.2 kW
Drawbar (tested)	60.5 hp 45.1 kW
PTO (tested)	75.9 hp 56.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
ROPS, cab optional

Hydraulics
Type	open center
	closed OptOptional
Pressure	2684 psi 185.1 bar
Valves	2 to 4
Total flow	15 gpm (open) 56.8 lpm
	34.8 gpm (combined flow) 131.7 lpm
	29 gpm (closed) 109.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7,000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000 OptOptional

Dimensions & Tires
Wheelbase	97 inches 246 cm
Weight	8630 to 9305 pounds
Front tire	10.00-16
Rear tire	480/70R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	80
Battery CCA	505
Battery volts	12

References
5400 Series published in 2006, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Configuration	wastegate turbocharged diesel, 4-cylinder, liquid-cooled vertical
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	85 hp 63.4 kW
Air cleaner	dual paper elements
Compression	17.5:1
Rated RPM	2200
Starter volts	12

Massey Ferguson 5445 Engine

Transmission

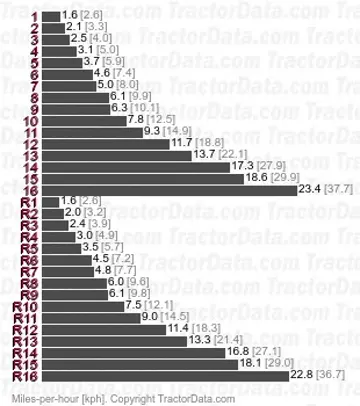

Transmission — Speedshift, mechnical powershift

Transmission	Speedshift, mechnical powershift
Gears	16 forward and reverse

Transmission — Dyna-4

Transmission	Dyna-4
Oil capacity	16 qts 15.1 L

Dimensions

Massey Ferguson 5445 Tires
Ag front	10.00-16 (2WD)
	13.6R28
Ag rear	480/70R38

Dimensions
Wheelbase	97 inches 246 cm
Length	165.7 inches 420 cm
Width	79.3 inches 201 cm
Height	108.3 inches 275 cm
2WD Operating weight	8630 lbs 3914 kg
4WD Operating weight	9305 lbs 4220 kg

Tests

OCED Tractor Test 2291
Diesel 16-speed 4WD September 2004 - 2004, Link: OCED Tractor Test 2291 file
PTO performance
Max power	75.9 hp 56.6 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Power at rated engine speed	70.7 hp 52.7 kW
Fuel use	5.0 gal/hour 18.9 l/hour
Power at rated PTO speed	73.4 hp 54.7 kW
Fuel use	4.8 gal/hour 18.2 l/hour
Drawbar performance
Max power	60.5 hp 45.1 kW
Fuel use	4.9 gal/hour 18.5 l/hour
Gear 8 used for power test.
Max pull	8,680 lbs 3937 kg
Gear 2TC used for pull test.

Attachments

Attachment overview
Massey Ferguson 1065 loader
Massey Ferguson 1070 loader

Photos

Massey Ferguson 5445, right side.

Massey Ferguson 5445 with loader, left side.
