Massey Ferguson 5460

The Massey Ferguson 5460 is a tractor produced by Massey Ferguson. It is equipped with a 268 ci 4.4 L engine. The rated power output is 105 hp 78.3 kW. Transmission: Speedshift, mechnical powershift. Operating weight: 9170 to 9975 pounds.

Overview

	2005 - 2013 Model year 2005-20082008-2013 5400 SeriesUtility tractor
2005 - 2013
Model year 2005-20082008-2013
5400 Series
Utility tractor

Production
Manufacturer	Massey Ferguson
Utility tractor
Built in Beauvais, France

Variants
5460SA	low-profile and narrow, special applications

Massey Ferguson 5460 Engine
Perkins 4.4L 4-cyl diesel
Fuel tank	40 gal 151.4 L
	53.2 gal*With optional tank 201.4 L
Engine details ...

Massey Ferguson 5460 Transmission
16-speed
Transmission details ...

Massey Ferguson 5460 Power
Engine	105 hp 78.3 kW
Drawbar (claimed)	73 hp 54.4 kW
PTO (claimed)	90 hp 67.1 kW
Drawbar (tested)	73.0 hp 54.4 kW
PTO (tested)	98.6 hp 73.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Independent hydraulic wet disc brakes
ROPS, cab optional

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2900 psi 200.0 bar
Valves	2 to 4
Total flow	15 gpm (open) 56.8 lpm
	34.8 gpm (combined flow) 131.7 lpm
	29 gpm (closed) 109.8 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7,000 lbs 3175 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000 OptOptional

Dimensions & Tires
Wheelbase	101.5 inches (2WD) 257 cm
	100.5 inches (4WD) 255 cm
Weight	9170 to 9975 pounds
Front tire	10.00-16
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	80
Battery volts	12

References
5400 Series published in 2006, by Massey Ferguson

Engine

Engine Detail — 268 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled vertical
Displacement	268 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	105 hp 78.3 kW
Air cleaner	dual paper elements
Compression	17.5:1
Rated RPM	2200
Starter volts	12

Massey Ferguson 5460 Engine

Transmission

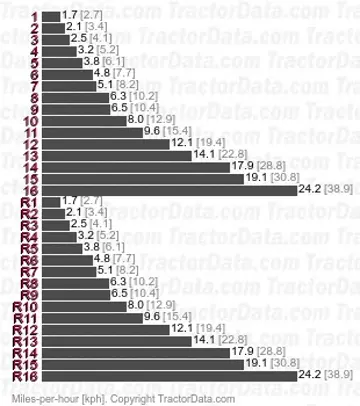

Transmission — Speedshift, mechnical powershift

Transmission	Speedshift, mechnical powershift
Gears	16 forward and reverse

Dimensions

Massey Ferguson 5460 Tires
Ag front	10.00-16 (2WD)
	14.9R28 (4WD)
Ag rear	18.4R38

Dimensions
Wheelbase	101.5 inches (2WD) 257 cm
	100.5 inches (4WD) 255 cm
Length	169.3 inches 430 cm
Width	79.3 inches 201 cm
Height	109.1 inches 277 cm
2WD Operating weight	9170 lbs 4159 kg
4WD Operating weight	9975 lbs 4524 kg

Tests

OCED Tractor Test 2270
Diesel 16-speed 4WD April 2004 - May 2004, Link: OCED Tractor Test 2270 file
PTO performance
Max power	98.6 hp 73.5 kW
Fuel use	5.6 gal/hour 21.2 l/hour
Power at rated engine speed	90.8 hp 67.7 kW
Fuel use	6.2 gal/hour 23.5 l/hour
Power at rated PTO speed	96.2 hp 71.7 kW
Fuel use	5.8 gal/hour 22.0 l/hour
Drawbar performance
Max power	73.0 hp 54.4 kW
Fuel use	6.2 gal/hour 23.5 l/hour
Gear 8 used for power test.
Max pull	8385 lbs 3803 kg
Gear 3TC used for pull test.

Attachments

Attachment overview
Massey Ferguson 1065 loader
Massey Ferguson 1070 loader
