Massey Ferguson 5712SL

The Massey Ferguson 5712SL is a tractor produced by Massey Ferguson. It is equipped with a 268.5 ci 4.4 L engine. The rated power output is 115 hp 85.8 kW. Transmission: Dyna-6. Operating weight: 8929 to 10582 pounds.

Overview

	2016 - 2018 5700SL SeriesUtility tractor
2016 - 2018
5700SL Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor
Built in Beauvais, France
Original price was $100,073 in 2018

Massey Ferguson 5712SL Engine
AGCO Power 4.4L 4-cyl diesel
Fuel tank	47.5 gal 179.8 L
Exhaust fluid (DEF)	6.6 gal 25.0 L
Engine details ...

Massey Ferguson 5712SL Power
Engine	115 hp 85.8 kW
PTO (claimed)	95 hp 70.8 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Cab standard with air-conditioning. Auto-Guide 3000 ((Optional))

Hydraulics
Type	open center
	closed center load-sensing OptOptional
Pressure	2900 psi 200.0 bar
Valves	1 to 4
Pump flow	15 gpm 56.8 lpm
	26 gpm (Twin-Flow) 98.4 lpm
	29 gpm (CCLS) 109.8 lpm

Tractor hitch
Rear Type	III/II
Control	lower-link draft sensing
Rear lift (at 24"/610mm)	8575 lbs 3889 kg
Drawbar	Cat. 2

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/540E (1.375)
	540/540E/1000 (1.375)

Dimensions & Tires
Wheelbase	100.4 inches 255 cm
Weight	8929 to 10582 pounds
Front tire	380/85R24
Rear tire	460/85R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Classic Charging amps	120
Deluxe Charging amps	175
Battery CCA	600
Battery volts	12
Battery Group	1

References
5700SL Series published in 2016, by Massey Ferguson
MF 5700 SL published in 2015, by Massey Ferguson
5700SL Series Mid-Range Tractors published in 2016, by Massey Ferguson
MF 5700 SL Product Book published in 2015, by Massey Ferguson

Engine

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	AGCO Power
Configuration	turbocharged aftercooled diesel, 4-cylinder 16-valve, liquid-cooled
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.25x4.72 inches 108 x 120 mm
Emissions	Tier IV
Emission control	selective catalytic reduction
Power	115 hp 85.8 kW
Maximum Power	120 hp 89.5 kW
Fuel system	high-pressure common rail
Cooling system	electronic viscous fan
Air cleaner	dual element dry
Pre-heating	block heater
Rated RPM	2200
Torque	370 lb-ft 501.7 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Massey Ferguson 5712SL Engine

Transmission

Transmission options
16-speed four-speed power shift
24-speed six-speed power shift

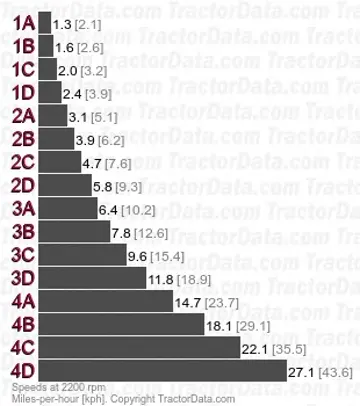

Transmission — Dyna-4

Transmission	Dyna-4
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	wet disc
Four power-shift gears in four ranges with power shuttle.
With 18.4R38 rear tires.

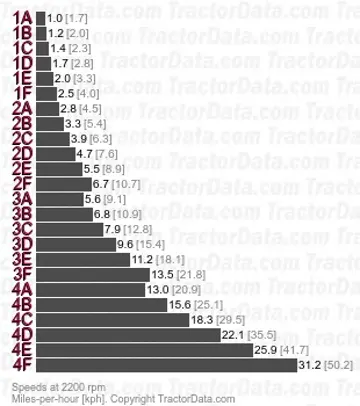

Transmission — Dyna-6

Transmission	Dyna-6
Type	six-speed power shift
Gears	24 forward and reverse
Clutch	wet disc
Six power-shift gears in four ranges with power shuttle.
With 18.4R38 rear tires.

Dimensions

Massey Ferguson 5712SL Tires
Standard tires (ag)	Front: 380/85R24. Rear: 460/85R34

Dimensions
Wheelbase	100.4 inches 255 cm
Length	171.5 inches 435 cm
Width	90.6 inches*Width over rear fenders. 230 cm
Height (cab)	111.3 inches 282 cm
Flange rear axle

Massey Ferguson 5712SL Weight
2WD	8929 lbs 4050 kg
4WD	10582 lbs 4799 kg
1WD Max capacity	16094 lbs 7300 kg
4WD Max capacity	18739 lbs 8500 kg

Photos

Massey Ferguson 5712SL tractor photo
