Massey Ferguson 6110

The Massey Ferguson 6110 is a tractor produced by Massey Ferguson. It is equipped with a 248.4 ci 4.1 L engine. The rated power output is 71 hp 52.9 kW. Transmission: Dynashift. Operating weight: 8200 to 8820 pounds.

Overview

	1995 - 1997 6100 SeriesUtility tractor
1995 - 1997
6100 Series
Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 6110 Engine
Perkins 4.1L 4-cyl diesel
Fuel tank	34.3 gal 129.8 L
Engine details ...

Massey Ferguson 6110 Power
Engine	71 hp 52.9 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Wet disc brakes
Cab standard.

Hydraulics
Type	open center
Pressure	2600 psi 179.3 bar
Pump flow	13.2 gpm 50.0 lpm
Steering flow	7.6 gpm 28.8 lpm
Steering press.	247 psi 17.0 bar

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7562 lbs 3430 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1980
	1000@2000
Front PTO	independent
Front PTO Type	1000
Engine RPM	1000@2040

Dimensions & Tires
2WD Wheelbase	93.4 inches 237 cm
4WD Wheelbase	93.5 inches 237 cm
Weight	8200 to 8820 pounds
Front tire	10.00-16
2WD Rear tire	16.9R34
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
Battery volts	12

Engine

Engine Detail — 248.4 ci / 4.1 L Diesel

Manufacturer	Perkins 4.41
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	248.4 ci 4.1 L
Bore/Stroke	3.976x5.00 inches 101 x 127 mm
Power	71 hp 52.9 kW
Rated RPM	2200
Idle RPM	750-2350
Torque	203 lb-ft 275.3 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Intake valve clearance	0.012 inches*Cold 0.305 mm
Exhaust valve clearance	0.012 inches*Cold 0.305 mm

Transmission

Transmission options
16-speed two-speed power shift
32-speed four-speed power shift

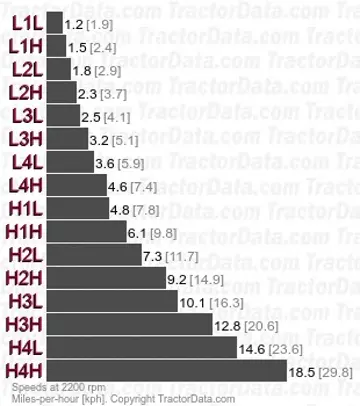

Transmission — Speedshift

Transmission	Speedshift
Type	two-speed power shift
Gears	16 forward and reverse
Clutch	wet disc
Four gears in two ranges with two-speed power shift.
With 16.9-34 rear tires. Reverse speeds are 3% slower than forward. Also available in 40KPH version.

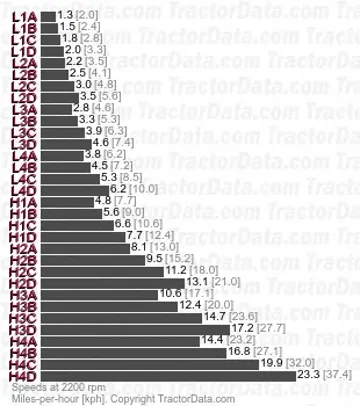

Transmission — Dynashift

Transmission	Dynashift
Type	four-speed power shift
Gears	32 forward and reverse
Clutch	wet disc
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.
With 13.6R38 rear tires.

Dimensions

Massey Ferguson 6110 Tires
2WD Standard tires (ag)	Front: 10.00-16. Rear: 16.9R34
4WD Standard tires (ag)	Front: 13.6R24. Rear: 16.9R34

Dimensions
2WD Wheelbase	93.4 inches 237 cm
4WD Wheelbase	93.5 inches 237 cm
2WD Length	157.3 inches 399 cm
4WD Length	160.2 inches 406 cm
Width	101.2 inches 257 cm
Height (steering wheel)	77.6 inches 197 cm
Height (cab)	103.4 inches 262 cm
2WD Weight	8200 lbs 3719 kg
4WD Weight	8820 lbs 4000 kg
Clearance (drawbar)	15.2 inches 38 cm

Attachments

Attachment overview
Massey Ferguson 1048 loader
Massey Ferguson 1048 MSL loader

Photos

Massey Ferguson 6110 tractor photo
