Massey Ferguson 6130

The Massey Ferguson 6130 is a tractor produced by Massey Ferguson. It is equipped with a 244.1 ci 4.0 L engine. The listed engine power is Diesel (listed): 85 hp / 63.4 kW. Transmission: Dynashift. Operating weight: 8620 to 9110 pounds.

Engine Power

Diesel (listed): 85 hp / 63.4 kW

Fuel & Capacities

34.3 gal 129.8 L

Transmission

Dynashift

Operating Weight

8620 to 9110 pounds

Overview

	1995 - 1999 6100 SeriesUtility tractor 6100 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Massey Ferguson 6130 Engine
Perkins 4.0L 4-cyl diesel
Fuel tank	34.3 gal 129.8 L
Engine details ...

Massey Ferguson 6130 Power
Engine	85 hp 63.4 kW

Mechanical
Two- or four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Wet disc brakes
Cab standard.

Hydraulics
Type	open center
Pressure	2600 psi 179.3 bar
Pump flow	13.2 gpm 50.0 lpm
Steering flow	7.6 gpm 28.8 lpm
Steering press.	247 psi 17.0 bar

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	7562 lbs 3430 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1980
	1000@2000
Front PTO	independent
Front PTO Type	1000
Engine RPM	1000@2040

Dimensions & Tires
2WD Wheelbase	93.4 inches 237 cm
4WD Wheelbase	93.5 inches 237 cm
Weight	8620 to 9110 pounds
Front tire	10.00-16
Rear tire	16.9R34 (2WD)
Full dimensions and tires ...

Electrical
Ground	negative
Batteries	2
Battery volts	12

Engine

Engine Detail — 244.1 ci / 4.0 L Diesel

Manufacturer	Perkins 1004-4TLR
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	244.1 ci 4.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Power	85 hp 63.4 kW
Rated RPM	2200
Idle RPM	750-2310
Torque	240 lb-ft 325.4 Nm
Torque RPM	1400
Starter	electric
Starter volts	12
Intake valve clearance	0.008 inches*Cold 0.203 mm
Exhaust valve clearance	0.018 inches*Cold 0.457 mm

Transmission

Transmission options
16-speed two-speed power shift
32-speed four-speed power shift

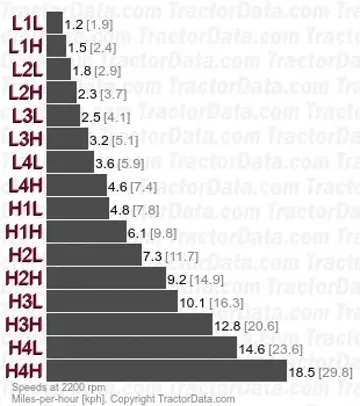

Transmission — Speedshift

Transmission	Speedshift
Type	two-speed power shift
Gears	16 forward and reverse
Clutch	wet disc
Four gears in two ranges with two-speed power shift.
With 16.9-34 rear tires. Reverse speeds are 3% slower than forward. Also available in 40KPH version.

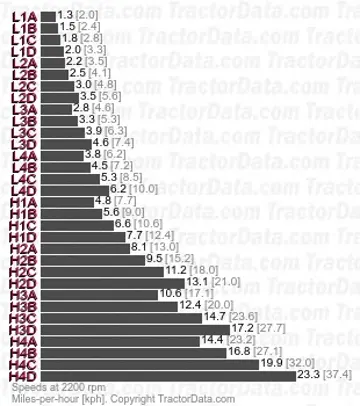

Transmission — Dynashift

Transmission	Dynashift
Type	four-speed power shift
Gears	32 forward and reverse
Clutch	wet disc
Two ranges, each with four power shift gears in four synchronized ranges plus shuttle.
With 13.6R38 rear tires.

Dimensions

Massey Ferguson 6130 Tires
Standard tires (ag)	Front: 10.00-16. Rear: 16.9R34 (2WD)
	Front: 13.6R24. Rear: 16.9R34 (4WD)

Dimensions
2WD Wheelbase	93.4 inches 237 cm
4WD Wheelbase	93.5 inches 237 cm
2WD Length	157.3 inches 399 cm
4WD Length	160.2 inches 406 cm
Width	101.2 inches 257 cm
Height (steering wheel)	77.6 inches 197 cm
Height (cab)	103.4 inches 262 cm
2WD Weight	8620 lbs 3910 kg
4WD Weight	9110 lbs 4132 kg
Clearance (drawbar)	15.2 inches 38 cm

Attachments

Attachment overview
Massey Ferguson 1048 loader
Massey Ferguson 1048 MSL loader

Photos

Massey Ferguson 6130

Massey Ferguson 6130 cab interior.

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 6130 based on its 85 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 6130.

Estimated Continuous Field Runtime: 7.8 hrs

Approximately 7.8 hours of continuous field operation at ~75% rated power on a full tank (34.3 gal / 129.8 L).

Estimated 75% Load Fuel Burn~4.4 gal/hr (16.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
