Massey Ferguson 6713S

The Massey Ferguson 6713S is a tractor produced by Massey Ferguson. It is equipped with a 299 ci 4.9 L engine. The listed engine power is Diesel (listed): 115 hp / 85.8 kW. Transmission: Dyna-VT. Operating weight: 15432 lbs 6999 kg.

Engine Power

Diesel (listed): 115 hp / 85.8 kW

Fuel & Capacities

67 gal 253.6 L

Transmission

Dyna-VT

Operating Weight

15432 lbs 6999 kg

Overview

	2017 - 2021 6700S SeriesUtility tractor 6700S Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Variants
MT465E	similar Challenger model

Massey Ferguson 6713S Engine
AGCO Power 4.9L 4-cyl diesel
Fuel tank	67 gal 253.6 L
Exhaust fluid (DEF)	7.9 gal 29.9 L
Engine details ...

Massey Ferguson 6713S Power
Engine	115 hp 85.8 kW
PTO (claimed)	110 hp 82.0 kW

Mechanical
Four-wheel drive
Differential lock	electro-hydraulic front and rear
Power steering
Hydraulic wet disc brakes
Trailer brakes	pneumatic OptOptional
	hydraulic OptOptional
Cab standard with air-conditioning. Available cab suspension.

Hydraulics
Type	open center
	closed center OptOptional
Pressure	2900 psi 200.0 bar
Rear valves	5 OptOptional
Front valves	2 OptOptional
Pump flow	26.4 gpm (open) 99.9 lpm
	29.1 gpm (closed) 110.1 lpm
	50 gpmOptOptional 189.2 lpm

Tractor hitch
Rear Type	III

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540E@1530
	540@1980
	1000E@1570
	1000@2030
Front PTO	independent OptOptional
Front PTO Type	1000
Engine RPM	1000@1920

Dimensions & Tires
Wheelbase	105.1 inches 266 cm
Weight	15432 lbs 6999 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Battery volts	12

References

MF 6700 S published in 2018, by Massey Ferguson
MF 6700 S published in 2019, by Massey Ferguson

Engine

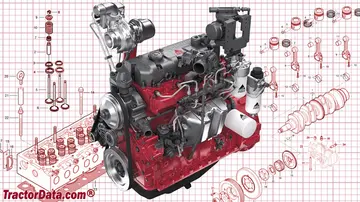

Engine Detail — 299 ci / 4.9 L Diesel

Manufacturer	AGCO Power 49 AWF
Configuration	intercooled turbocharged diesel, 4-cylinder 16-valve, liquid-cooled inline
Displacement	299 ci 4.9 L
Bore/Stroke	4.252x5.276 inches 108 x 134 mm
Emissions	Stage V
Emission control	SCR/DEF/DOC
Power	115 hp 85.8 kW
Maximum Power	130 hp 96.9 kW
Fuel system	high-pressure common rail direct injection
Rated RPM	2100
Torque	478 lb-ft 648.2 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Massey Ferguson 6713S Engine

Transmission

Transmission options
16-speed four-speed power shift
24-speed six-speed power shift
continuously variable transmission (CVT)

Transmission — Dyna-4

Transmission	Dyna-4
Type	four-speed power shift
Gears	16 forward and reverse
Clutch	wet disc

Transmission — Dyna-6

Transmission	Dyna-6
Type	six-speed power shift
Gears	24 forward and reverse
Clutch	wet disc

Transmission — Dyna-VT

Transmission	Dyna-VT
Type	continuously variable transmission (CVT)
Gears	infinite forward and reverse

Dimensions

Massey Ferguson 6713S Tires

Dimensions
Wheelbase	105.1 inches 266 cm
Length	194 inches 492 cm
Width	72 inches*Minimum 182 cm
Height (cab)	118.9 inches 302 cm
Weight	15432 lbs 6999 kg
Max weight	27558 lbs 12500 kg
Flange rear axle
Bar rear axle

Photos

Massey Ferguson 6713S tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 6713S based on its 115 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 6713S.

Estimated Continuous Field Runtime: 11.2 hrs

Approximately 11.2 hours of continuous field operation at ~75% rated power on a full tank (67 gal / 253.6 L).

Estimated 75% Load Fuel Burn~6 gal/hr (22.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
