Massey Ferguson 114LTX

The Massey Ferguson 114LTX is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 349 lbs 158 kg.

Overview

	1991 - 1994 100 LTX SeriesLawn tractorIngersoll built 100 LTX Series Lawn tractor Ingersoll built

Production
Distributor	Massey Ferguson
Manufacturer	Ingersoll
Lawn tractor

Massey Ferguson 114LTX Engine
14HP Briggs & Stratton 480cc 2-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

Massey Ferguson 114LTX Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Dimensions & Tires
Wheelbase	42 inches 106 cm
Weight	349 lbs 158 kg
Front tire	13x6.50-6
Rear tire	18x8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Charging amps	16
Battery volts	12

References
100 Series published in 1990, by Massey Ferguson
Lawn and Garden Tractors published in 1991, by Massey Ferguson

Engine

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton 294777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft
Displacement	480 cc 29.3 ci
Bore/Stroke	2.68x2.60 inches 68 x 66 mm
Power (gross)	14 hp 10.4 kW
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type	belt-driven hydrostatic
Gears	infinite forward and reverse

Dimensions

Massey Ferguson 114LTX Tires
Lawn/turf front	13x6.50-6
Lawn/turf rear	18x8.50-8

Dimensions
Wheelbase	42 inches 106 cm
Length	60.25 inches 153 cm
Width	33 inches 83 cm
Height	39 inches 99 cm
Weight	349 lbs 158 kg

Attachments

Attachment overview
42" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

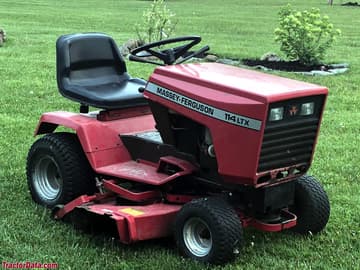

Massey Ferguson 114LTX
