Massey Ferguson 14

The Massey Ferguson 14 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 513 cc 31.3 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: infinite forward and reverse (2-range). Operating weight: 930 lbs*Weight with 48-inch mower deck. 421 kg.

Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
2.5 gal 9.5 L
Transmission
infinite forward and reverse (2-range)
Operating Weight
930 lbs*Weight with 48-inch mower deck. 421 kg

Overview

Massey Ferguson 14 tractor photo
1972 - 1976 Garden tractorAMF built Garden tractor AMF built
Production
Distributor
Massey Ferguson
Manufacturer
AMF
Garden tractor
Built in Des Moines, Iowa, USA
Massey Ferguson 14 Engine
14HP Kohler 513cc 1-cyl gasoline
Fuel tank
2.5 gal 9.5 L
Engine details ...
Massey Ferguson 14 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Power Take-off (PTO)
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
47 inches 119 cm
Weight
930 lbs 421 kg
Front tire
16x6.50-8
Rear tire
23x8.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
Battery AH
42
References
14 references literature
Lawn and Garden Equipment published in 1975, by Massey Ferguson
Mowers (1448 766 M1) published in 1978
Complete Farm Machinery Guide published in 1976, by Massey Ferguson

Engine

Engine Detail — 513 cc / 31.3 ci Gasoline

Manufacturer
Kohler K321S
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
513 cc 31.3 ci
Bore/Stroke
3.50x3.25 inches 89 x 83 mm
Power
14 hp 10.4 kW
Rated RPM
3600
Starter volts
12
Oil capacity
2 qts 1.9 L

Transmission

Transmission — infinite forward and reverse (2-range) shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and reverse (2-range)
Oil capacity
5 qts 4.7 L

Dimensions

Massey Ferguson 14 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x8.50-12
Dimensions
Wheelbase
47 inches 119 cm
Length
70.5 inches 179 cm
Width
36.25 inches 92 cm
Height (steering wheel)
44.5 inches 113 cm
Weight
930 lbs*Weight with 48-inch mower deck. 421 kg
Ground clearance
6.5 inches 16 cm
Front tread
28 inches 71 cm
Rear tread
28 inches 71 cm

Attachments

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
48" Mower deck
Type
mid-mount Massey Ferguson 510
3-blade
Cutting width
48 inches 121 cm

Photos

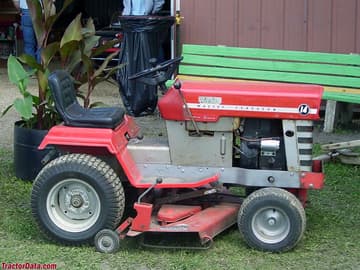

Massey Ferguson 14

Massey Ferguson 14

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 14.

Estimated Continuous Field Runtime: 3.4 hrs

Approximately 3.4 hours of continuous field operation at ~75% rated power on a full tank (2.5 gal / 9.5 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Massey Ferguson Lawn Tractors Massey Ferguson 14 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 14.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
