Massey Ferguson 1450

The Massey Ferguson 1450 is a tractor produced by Massey Ferguson Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The rated power output is 14 hp 10.4 kW. Transmission: Sundstrand Series 15 - HT90. Drive type: belt. Operating weight: 175 lbs 79 kg.

Overview

	1977 - 1979 Garden tractorSnapper built
1977 - 1979
Garden tractor
Snapper built

1977 - 1979
Garden tractor
Snapper built

Production
Distributor	Massey Ferguson
Manufacturer	Snapper
Garden tractor

Massey Ferguson 1450 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank	2.75 gal 10.4 L
Engine details ...

Massey Ferguson 1450 Transmission
hydrostatic
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electric
Front PTO	independent
Clutch	electric

Dimensions & Tires
Wheelbase	47 inches 119 cm
Weight	800 lbs 362 kg
Front tire	16x6.50-8
Rear tire	23x8.50-12
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Battery volts	12
Battery AH	43

References
The MF 1650 & 1450 are new published in 1977, by Massey Ferguson
Operator's Manual 1450 and 1650 (1448 404 M1) published in 1976
Lawn and Garden Tractors published in 1977, by Massey Ferguson

Engine

	1977 - 1979 Garden tractorSnapper built
1977 - 1979
Garden tractor
Snapper built

1977 - 1979
Garden tractor
Snapper built

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler K321
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled horizontal-shaft
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power (gross)	14 hp 10.4 kW
Fuel system	carburetor
Idle RPM	2100-3600
Starter	electric
Starter volts	12
Sparkplug	Champion RH 10
Sparkplug gap	0.025 inches 0.635 mm
Point gap	0.020 inches 0.508 mm
Oil capacity	1.5 qts 1.4 L
Oil change	25 h

Transmission

	1977 - 1979 Garden tractorSnapper built
1977 - 1979
Garden tractor
Snapper built

1977 - 1979
Garden tractor
Snapper built

Transmission — Sundstrand Series 15 - HT90

Transmission	Sundstrand Series 15 - HT90
Type	belt-driven hydrostatic
Gears	infinite forward and reverse (2-range)
Oil capacity	5 qts 4.7 L
Oil type	M-1110 ATF
Oil change	300 h
Sundstrand hydrostatic with Peerless 2518 transaxle. Right-hand treadle pedal to control speed and direction. Tractor must be stopped with brake pedal depressed to shift range.

	M-1110 ATF

Dimensions

	1977 - 1979 Garden tractorSnapper built
1977 - 1979
Garden tractor
Snapper built

1977 - 1979
Garden tractor
Snapper built

Massey Ferguson 1450 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	23x8.50-12
	23x8.50-12

Dimensions
Wheelbase	47 inches 119 cm
Length	70.75 inches 179 cm
Width	41.5 inches 105 cm
Height (steering wheel)	45.5 inches 115 cm
Shipping weight	800 lbs 362 kg
Clearance (rear axle)	8 inches 20 cm
Clearance (drawbar)	8.25 inches 20 cm
Front tread	29 inches 73 cm
Rear tread	30.5 inches 77 cm

Attachments

	1977 - 1979 Garden tractorSnapper built
1977 - 1979
Garden tractor
Snapper built

1977 - 1979
Garden tractor
Snapper built

Attachment overview
48" mid-mount mower deck
Snowblower
Blade
Front-end loader
The Massey 1650 was compatible with the 4250 tiller.

48" Mower deck
Type	mid-mount Massey Ferguson
	3-blade with hydraulic lift
Cutting width	48 inches 121 cm
Drive	belt
Weight	175 lbs 79 kg
Cut height	1.5 to 4 inch 3 to 10 cm

Photos

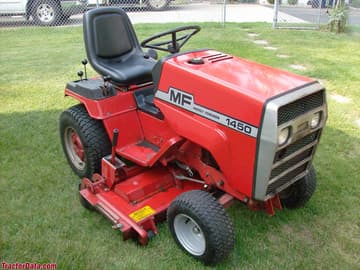

Massey Ferguson 1450

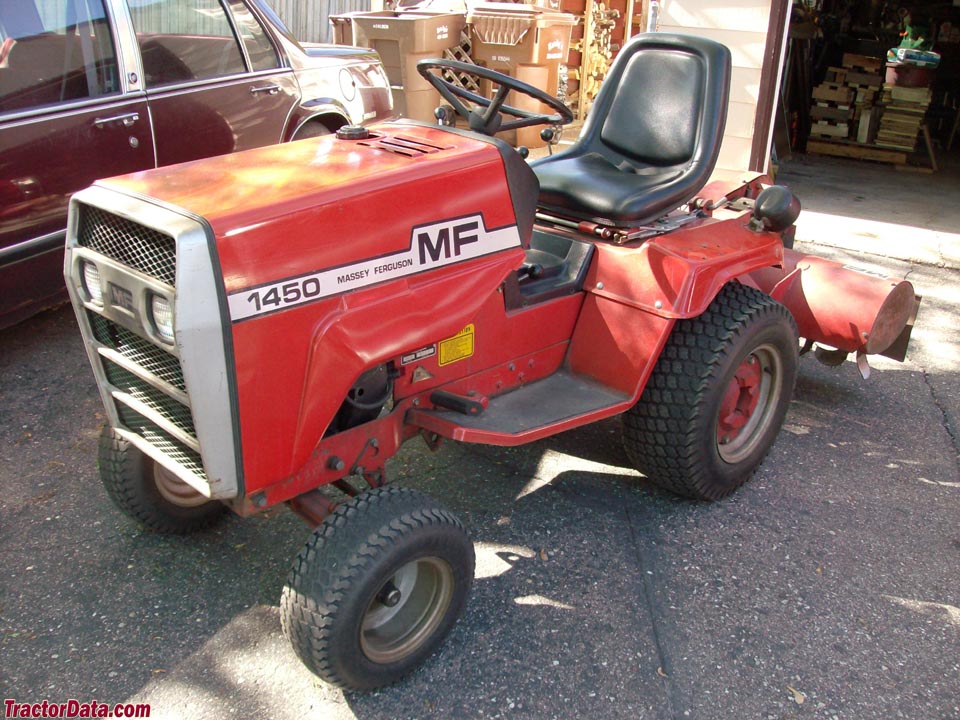

Massey Ferguson 1450

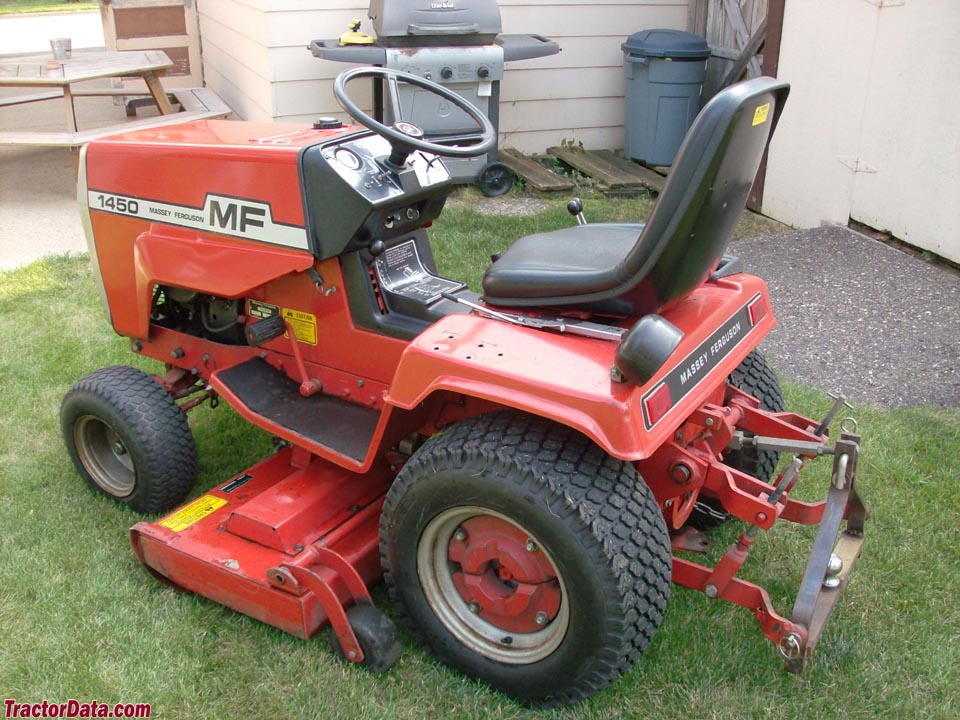

Massey Ferguson 1450
