Massey Ferguson 24S Deluxe
The Massey Ferguson 24S Deluxe is a tractor produced by Massey Ferguson Lawn Tractors. The listed engine power is Gasoline (listed): 4 hp / 3.0 kW. Transmission: 3 forward and 1 reverse. Operating weight: 210 lbs 95 kg.
Engine Power
Gasoline (listed): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
210 lbs
95 kg
Overview
 | 1964 - 1967
Lawn tractorDura built
Lawn tractor
Dura built |
|---|
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Dura |
Lawn tractor | |
Built in Richmond, Indiana, USA | |
Original price was $290 in 1965 | |
Variants | |
|---|---|
24S Standard | tiller-steer |
24S Deluxe | steering wheel |
Massey Ferguson 24S Deluxe Engine | |
|---|---|
4HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
Massey Ferguson 24S Deluxe Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 210 lbs
95 kg |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Massey-Ferguson Riding Mowers published in 1966, by Massey Ferguson |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertial-shaft |
Power | 4 hp
3.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 3 forward and 1 reverse gear
Type | gear |
Gears | 3 forward and 1 reverse |
Dimensions
Massey Ferguson 24S Deluxe Tires |
|---|
Dimensions | |
|---|---|
Weight | 210 lbs
95 kg |
Attachments
24" Mower deck | |
|---|---|
Type | mid-mount Massey Ferguson |
Cutting width | 24 inches
60 cm |
Cut height | 1 to 3 inch
2 to 7 cm |
Photos

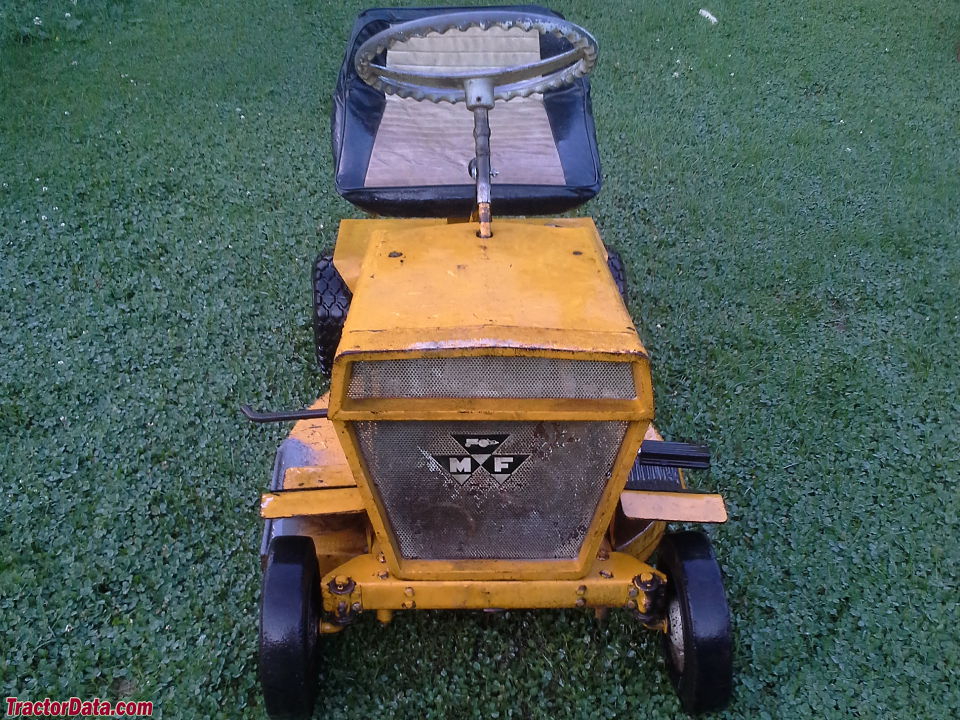

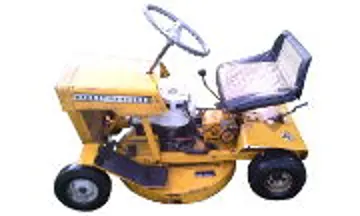

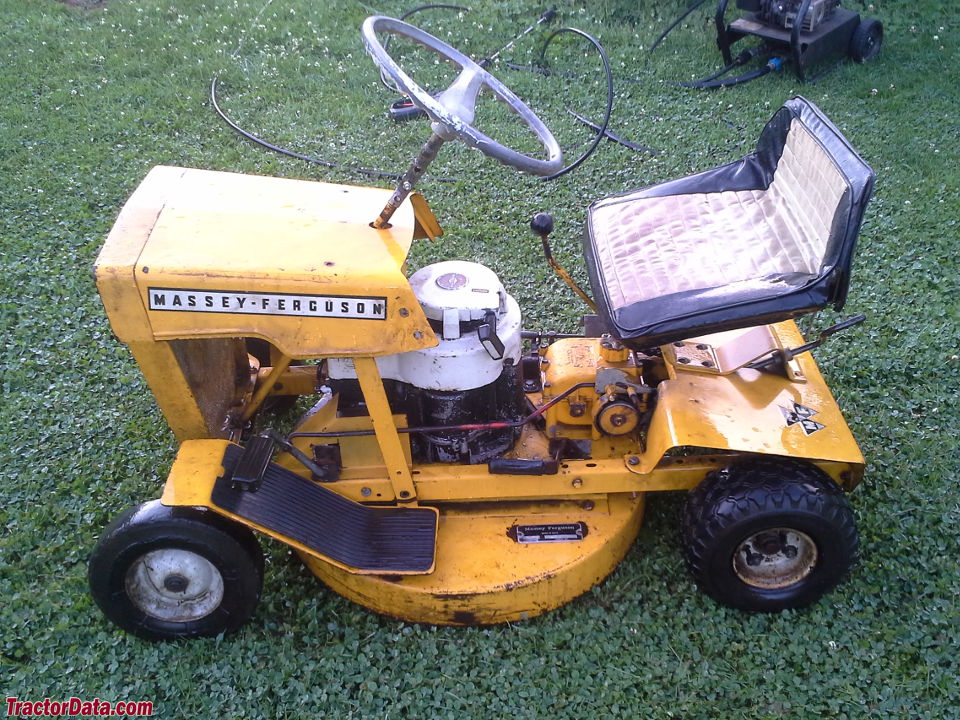

Massey Ferguson 24S Deluxe
Massey Ferguson 24S Deluxe
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson Lawn Tractors Massey Ferguson 24S Deluxe.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Massey Ferguson Lawn Tractors Massey Ferguson 24S Deluxe Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Ferguson Lawn Tractors Massey Ferguson 24S Deluxe.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
