Massey Ferguson 2514H
The Massey Ferguson 2514H is a tractor produced by Massey Ferguson Lawn Tractors. The rated power output is 14 hp 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 450 lbs (with mower deck) 204 kg.
Engine Power
14 hp
10.4 kW
Fuel & Capacities
2 gal
7.6 L
Transmission
infinite forward and reverse
Operating Weight
450 lbs (with mower deck)
204 kg
Massey Ferguson Lawn Tractors Massey Ferguson 2514H Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 1998
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 1998 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 1998 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Production | |
|---|---|
Distributor | Massey Ferguson |
Manufacturer | Simplicity |
Lawn tractor | |
Built in Port Washington, Wisconsin, USA | |
Massey Ferguson 2514H Engine | |
|---|---|
14HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 2 gal
7.6 L |
Engine details ...  | |
Massey Ferguson 2514H Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. Vinyl snow cab optional. |
Dimensions & Tires | |
|---|---|
Wheelbase | 50 inches
127 cm |
Weight | 450 lbs
204 kg |
Front tire | 15x6.0-6 |
Rear tire | 18x8.5-8 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Tractors and Riding Mowers published in 1996, by Massey Ferguson | |
Lawn & Garden Equipment published in 1997, by Massey Ferguson | |
Lawn & Garden Equipment published in 1998, by Massey Ferguson |
Engine
| 1996 - 1998
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 1998 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 1998 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton Vanguard |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 14 hp
10.4 kW |
Rated RPM | 3400 |
Starter | electric |
Starter volts | 12 |
Massey Ferguson 2514H Engine | |
|---|---|
 |
Transmission
| 1996 - 1998
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 1998 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 1998 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
| 1996 - 1998
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 1998 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 1998 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Massey Ferguson 2514H Tires | |
|---|---|
Lawn/turf front | 15x6.0-6 |
Lawn/turf rear | 18x8.5-8 |
Dimensions | |
|---|---|
Wheelbase | 50 inches
127 cm |
Length | 68 inches
172 cm |
Width | 36 inches
91 cm |
Height (steering wheel) | 41 inches
104 cm |
Weight | 450 lbs (with mower deck)
204 kg |
Keyed shaft rear axle | |
Attachments
| 1996 - 1998
2500 SeriesLawn tractorSimplicity built |
|---|---|
1996 - 1998 | |
2500 Series | |
Lawn tractor | |
Simplicity built | |
1996 - 1998 | |
|---|---|
2500 Series | |
Lawn tractor | |
Simplicity built |
Attachment overview | |
|---|---|
38" mid-mount mower deck | |
Snowblower | |
Blade | |
The 42-inch front blade was intended for snow only. |
38" Mower deck | |
|---|---|
Type | mid-mount Massey Ferguson |
2-blade | |
Cutting width | 38 inches
96 cm |
Overall width | 49.5 inches
125 cm |
Cut height | 1.5 to 3.9 inch
3 to 9 cm |

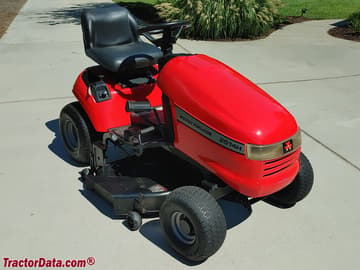

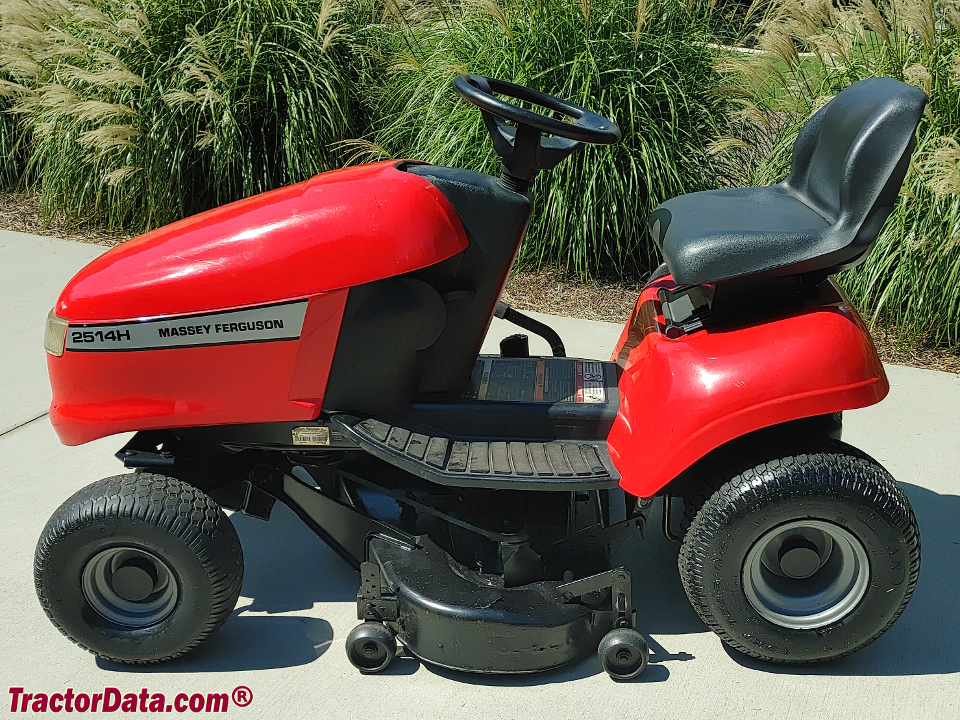

Photos
Massey Ferguson 2514H
Massey Ferguson 2514H
