Massey-Harris 101 Senior
The Massey-Harris 101 Senior is a tractor produced by Massey Harris. It is equipped with a 226 ci 3.7 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 4000 lbs 1814 kg.
Overview
 | 1942 - 1946
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Massey-Harris |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $1,300 in 1946 | |
The Massey-Harris 101 Senior was similar to the 101 Super, but with a Continental engine instead of the Chrysler engine. | |
Massey-Harris 101 Senior Engine | |
|---|---|
Continental 3.7L 6-cyl gasoline | |
Fuel tank | 18 gal (row-crop)
68.1 L |
14 gal (standard)
53.0 L | |
Engine details ...  | |
Massey-Harris 101 Senior Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Massey-Harris 101 Senior Power | |
|---|---|
Drawbar (claimed) | 26 hp
19.4 kW |
Belt (claimed) | 36 hp
26.8 kW |
Plows | 3 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical internal expanding brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 (1.375) |
Engine RPM | 557@1500 |
Dimensions & Tires | |
|---|---|
Weight | 4000 lbs
1814 kg |
Front tire | 6.00-16 |
Rear tire | 11-38 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 13.5 inches
34 cm |
Width | 6.25 inches
15 cm |
RPM | 698 |
837 (Twin Power) | |
Speed | 2465 ft/min
751.33 meters/min |
2960 ft/min (Twin Power)
902.21 meters/min | |
Electrical | |
|---|---|
Ground | positive |
Charging system | generator |
Battery volts | 6 |
References | |
|---|---|
 | |
Operating Instructions and Service Manual for Massey-Harris 101 Senior Tractors (193-2M-7-50-S) published in 1944 |
Engine
Engine Detail — 226 ci / 3.7 L Gasoline
Manufacturer | Continental F226 |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled vertical L-head |
Displacement | 226 ci
3.7 L |
Bore/Stroke | 3.3125x4.375 inches
84 x 111 mm |
Air cleaner | oil bath |
Compression | 6:1 |
Rated RPM | 1500 |
1800 (Twin Power) | |
Firing order | 1-5-3-6-2-4 |
Starter volts | 6 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 14 qts
13.2 L |
Sparkplug | Champion 8 |
Sparkplug gap | 0.025 inches
0.635 mm |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | dry disc |
Oil capacity | 24 qts
22.7 L |
With 11x38 rear tires. | |
 | |
Dimensions
Massey-Harris 101 Senior Tires | |
|---|---|
Ag front | 6.00-16 |
Ag rear | 11-38 |
Ag front | 10-38 |
11-26 (standard) | |
12-26 (standard) | |
Dimensions | |
|---|---|
Length | 133 inches (row-crop)
337 cm |
126.25 inches (standard)
320 cm | |
Width | 68.5 inches (row-crop)
173 cm |
66.25 inches (standard)
168 cm | |
Height (steering wheel) | 71.5 inches (row-crop)
181 cm |
63.25 inches (standard)
160 cm | |
Weight | 4000 lbs
1814 kg |
Rear tread | 52 to 88 inches
132 to 223 cm (row-crop) |
Rear tread | 52 inches
132 cm (standard) |
Photos

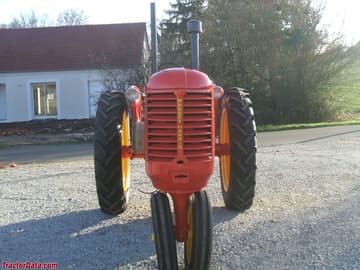

Massey-Harris 101 Senior row-crop tractor.
Massey-Harris 101 Senior row-crop tractor.
Massey-Harris 101 Senior row-crop tractor.
Massey-Harris 101 Senior row-crop tractor.
Massey-Harris 101 Senior operator station and controls.
Massey-Harris 101 Senior standard tractor.
Massey-Harris 101 Senior standard tractor.
Massey-Harris 101 Senior standard tractor.
Massey-Harris 101 Senior standard tractor.
