Massey-Harris 745
The Massey-Harris 745 is a tractor produced by Massey Harris. It is equipped with a 270 ci 4.4 L engine. Transmission: 5 forward and 1 reverse.
Fuel & Capacities
Diesel
Transmission
5 forward and 1 reverse
Massey Harris Massey-Harris 745 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1954 - 1958 | 1954 - 1958 |
|---|
Production | |
|---|---|
Manufacturer | Massey-Harris |
Built in Kilmarnock, Scotland | |
Total built | 11,000 (estimate) |
Massey-Harris 745 Engine | |
|---|---|
Perkins 4.4L 4-cyl diesel | |
Engine details ...  |
Massey-Harris 745 Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Massey-Harris 745 Power | |
|---|---|
Belt (claimed) | 45.5 hp
33.9 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — 270 ci / 4.4 L Diesel
Manufacturer | Perkins L4 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 270 ci
4.4 L |
Bore/Stroke | 4.25x4.75 inches
108 x 121 mm |
Rated RPM | 1500 |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Dimensions
Massey-Harris 745 Tires |
|---|
Dimensions |
|---|
Photos

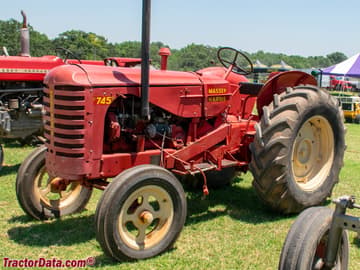

Massey-Harris 745S standard tractor.
