Massey-Harris 102 Junior
The Massey-Harris 102 Junior is a tractor produced by Massey Harris. It is equipped with a 162 ci 2.7 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 3,400 lbs 1542 kg.
Transmission
4 forward and 1 reverse
Operating Weight
3,400 lbs
1542 kg
Overview
 | 1939 - 1946 |
|---|
Production | |
|---|---|
Manufacturer | Massey-Harris |
Built in Racine, Wisconsin, USA | |
The Massey-Harris 102 Junior was the distillate version of the 101 Junior. During early production years, the 102 Jr. had a larger engine than the 101 Jr. so they would have the same horsepower. A 102 gasoline tractor (102G) was a Massey 101 Jr. destined for the export market; the data and serial number would be the same for other 101 Jr tractors. | |
Variants | |
|---|---|
101 Junior | gasoline |
102 Junior | distillate |
Massey-Harris 102 Junior Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Massey-Harris 102 Junior Power | |
|---|---|
Drawbar (claimed) | 20.5 hp
15.3 kW |
PTO (claimed) | 26.3 hp
19.6 kW |
Plows | 2 |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 3,400 lbs
1542 kg |
Front tire | 5.00-15 |
Rear tire | 10.00-36 |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
Continental 2.3L 4-cyl distillate | |
Continental 2.7L 4-cyl distillate |
Engine Detail — 139.6 ci / 2.3 L
Manufacturer | Continental MFA |
Configuration | 4-cylinder, liquid-cooled vertical L-head |
distillate | |
Original engine used for the first few years of production. | |
Displacement | 139.6 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Rated RPM | 1800 |
Starter volts | 6 |
Engine Detail — 162 ci / 2.7 L
Manufacturer | Continental |
Configuration | 4-cylinder, liquid-cooled vertical L-head |
distillate | |
Final engine, introduced around 1942. | |
Displacement | 162 ci
2.7 L |
Bore/Stroke | 3.4375x4.375 inches
87 x 111 mm |
Starter volts | 6 |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Massey-Harris 102 Junior Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 10.00-36 |
Ag front | 4.75-15 |
Ag rear | 10.00-36 |
Dimensions | |
|---|---|
Weight | 3,400 lbs
1542 kg |
Photos

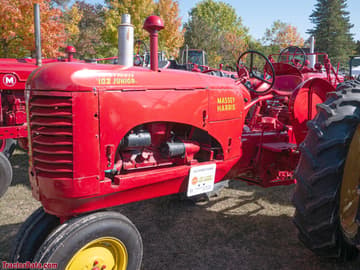

Massey-Harris 102 Junior
