Massey-Harris 20 Row-Crop
The Massey-Harris 20 Row-Crop is a tractor produced by Massey Harris. It is equipped with a 140 ci 2.3 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 2700 lbs 1224 kg.
Fuel & Capacities
Kerosene
Transmission
4 forward and 1 reverse
Operating Weight
2700 lbs
1224 kg
Massey Harris Massey-Harris 20 Row-Crop Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1946 - 1948
Row-Crop tractor |
|---|---|
1946 - 1948 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Massey-Harris |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $1,500 in 1948 | |
Variants | |
|---|---|
20 RC | row-crop |
20 STD | standard tread |
Massey-Harris 20 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Massey-Harris 20 Power | |
|---|---|
Belt (claimed) | 31 hp
23.1 kW |
Plows | 2 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 550 |
Dimensions & Tires | |
|---|---|
Wheelbase | 83 inches
210 cm |
Weight | 2700 lbs
1224 kg |
Front tire | 4.00x15 |
Rear tire | 9.00x32 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Tractors published in 1946, by Massey-Harris |
Engine
Engine options | |
|---|---|
Continental 2.0L 4-cyl gasoline | |
Continental 2.3L 4-cyl kerosene |
Engine Detail — 123.7 ci / 2.0 L Gasoline
Manufacturer | Continental F124 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 123.7 ci
2.0 L |
Bore/Stroke | 3.00x4.375 inches
76 x 111 mm |
Rated RPM | 1500 |
1800 | |
Coolant capacity | 11 qts
10.4 L |
Engine Detail — 140 ci / 2.3 L Kerosene
Manufacturer | Continental F140 |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Massey-Harris 20 Tires | |
|---|---|
Ag front | 4.00x15 |
Ag rear | 9.00x32 |
Dimensions | |
|---|---|
Wheelbase | 83 inches
210 cm |
Width | 82 inches
208 cm |
Height | 76 inches
193 cm |
Weight | 2700 lbs
1224 kg |
Rear axle | 2.125 inch diameter
53 mm |
Photos

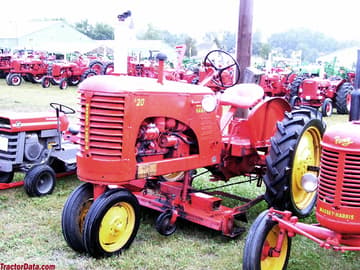

Massey-Harris 20 Row-Crop
