Massey-Harris 201
The Massey-Harris 201 is a tractor produced by Massey Harris. It is equipped with a 242 ci 4.0 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 6700 lbs 3039 kg.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
6700 lbs
3039 kg
Overview
 | 1940 - 1942
200 SeriesStandard-tread tractor
200 Series
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Massey-Harris |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $1,750 in 1942 | |
Variants | |
|---|---|
201 | Chrysler 4.1L gas |
202 | Continental 4.8L gas |
203 | Continental 5.4L distillate |
203G | Continental 5.4L gas |
Massey-Harris 201 Engine | |
|---|---|
Chrysler 4.0L 6-cyl gasoline | |
Engine details ...  |
Massey-Harris 201 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Massey-Harris 201 Power | |
|---|---|
Plows | 5 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Drum and shoe brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 6700 lbs
3039 kg |
Front tire | 7.50-18 |
Rear tire | 13-28 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 13.5 inches
34 cm |
Width | 8 inches
20 cm |
RPM | 839 |
Speed | 2962 ft/min
902.82 meters/min |
References | |
|---|---|
 | |
Two Powerful New Tractors... published in 1941, by Massey-Harris |
Engine
Engine Detail — 242 ci / 4.0 L Gasoline
Manufacturer | Chrysler |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 242 ci
4.0 L |
Bore/Stroke | 3.375x4.50 inches
86 x 114 mm |
Rated RPM | 1700 |
2000 (Twin Power) | |
Firing order | 1-5-3-6-2-4 |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | mechanical dry disc |
 | |
Dimensions
Massey-Harris 201 Tires | |
|---|---|
Ag front | 7.50-18 |
Ag rear | 13-28 |
14.9-28 | |
Dimensions | |
|---|---|
Weight | 6700 lbs
3039 kg |
Photos

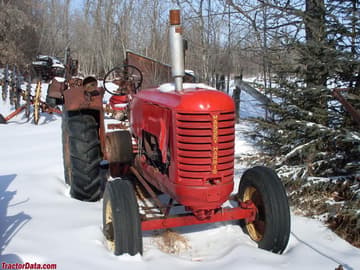

Massey-Harris 201
Massey-Harris 201
Massey Harris Massey-Harris 201 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Harris Massey-Harris 201.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
