Massey-Harris 203
The Massey-Harris 203 is a tractor produced by Massey Harris. It is equipped with a 330 ci 5.4 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 6700 lbs 3039 kg.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
6700 lbs
3039 kg
Massey Harris Massey-Harris 203 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1940 - 1947
200 SeriesStandard-tread tractor |
|---|---|
1940 - 1947 | |
200 Series | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Massey-Harris |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
Variants | |
|---|---|
201 | Chrysler 4.1L gas |
202 | Continental 4.8L gas |
203 | Continental 5.4L distillate |
203G | Continental 5.4L gas |
Massey-Harris 203 Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Massey-Harris 203 Power | |
|---|---|
PTO (claimed) | 37 hp
27.6 kW |
Plows | 5 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 6700 lbs
3039 kg |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 13.5 inches
34 cm |
Width | 8 inches
20 cm |
RPM | 839 |
Speed | 2962 ft/min
902.82 meters/min |
Engine
Engine options | |
|---|---|
Continental 5.4L 6-cyl distillate | |
Continental 5.4L 6-cyl gasoline |

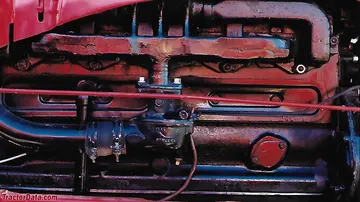

Engine Detail — 330 ci / 5.4 L
Manufacturer | Continental M330 |
Configuration | 6-cylinder, liquid-cooled |
distillate | |
Displacement | 330 ci
5.4 L |
Bore/Stroke | 4.00x4.375 inches
102 x 111 mm |
Rated RPM | 2000 |
Massey-Harris 203 Engine | |
|---|---|
 |
Engine Detail — 330 ci / 5.4 L Gasoline
Manufacturer | Continental |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Gasoline version available after 1944. | |
Displacement | 330 ci
5.4 L |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Clutch | mechanical dry disc |
 | |
Dimensions
Massey-Harris 203 Tires |
|---|
Dimensions | |
|---|---|
Weight | 6700 lbs
3039 kg |
Photos

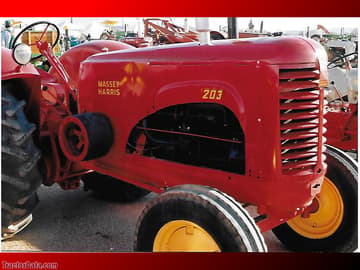

Massey-Harris 203 from the Larry Weber collection (Dome Valley Museum in Yuma).
Massey-Harris 203 from the Larry Weber collection (Dome Valley Museum in Yuma).
