Massey-Harris 22
The Massey-Harris 22 is a tractor produced by Massey Harris. It is equipped with a 140 ci 2.3 L engine. The rated power output is 31.05 hp 23.2 kW. Transmission: 4 forward and 1 reverse. Operating weight: 2928 lbs 1328 kg.
Engine Power
31.05 hp
23.2 kW
Fuel & Capacities
13 gal
49.2 L
Transmission
4 forward and 1 reverse
Operating Weight
2928 lbs
1328 kg
Massey Harris Massey-Harris 22 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1948 - 1953
Row-Crop tractor |
|---|---|
1948 - 1953 | |
Row-Crop tractor | |
Production | |
|---|---|
Manufacturer | Massey-Harris |
Row-Crop tractor | |
Built in Racine, Wisconsin, USA | |
Original price was $1,468 in 1953 | |
Variants | |
|---|---|
22 RC | row-crop |
22 STD | standard tread |
Massey-Harris 22 Engine | |
|---|---|
Continental 2.3L 4-cyl gasoline | |
Engine details ...  |
Massey-Harris 22 Transmission | |
|---|---|
4-speed unsynchronized gear | |
Transmission details ...  |
Massey-Harris 22 Power | |
|---|---|
Drawbar (claimed) | 18 hp
13.4 kW |
PTO (claimed) | 27 hp
20.1 kW |
Plows | 2 |
Drawbar (tested) | 22.87 hp
17.1 kW |
Belt (tested) | 31.05 hp
23.2 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 13 gal
49.2 L |
Hydraulic system | 1.75 gal
6.6 L |
Hydraulics | |
|---|---|
Capacity | 1.75 gal
6.6 L |
Pump flow | 7.5 gpm
28.4 lpm |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Engine RPM | 551@1500 |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Weight | 2928 lbs
1328 kg |
Front tire | 4x15 |
Rear tire | 9x32 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Power-Plus Tractors published in 1951, by Massey-Harris |
Engine
Engine Detail — 140 ci / 2.3 L Gasoline
Manufacturer | Continental |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Rated RPM | 1500 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 11 qts
10.4 L |
Transmission
Transmission — 4 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 4 forward and 1 reverse |
 | |
Dimensions
Massey-Harris 22 Tires | |
|---|---|
Ag front | 4x15 |
Ag rear | 9x32 |
Dimensions | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Operating weight | 2928 lbs
1328 kg |
Ballasted weight | 4522 lbs
2051 kg |
Front tread | 6.375/12.375 inches
16/31 cm |
Rear tread | 48 to 88 inches
121 to 223 cm |
Tests
Nebraska Tractor Test 403 | |
|---|---|
Gasoline 4-speed 2WD
October 15 - 21, 1948
Link: Nebraska Tractor Test 403 file | |
Belt power (max) | 31.05 hp
23.2 kW |
Belt fuel use (max) | 2.8 gal/hour
10.6 l/hour |
Drawbar performance | |
Max power | 22.87 hp
17.1 kW |
Gear 3 used for power test. | |
Max pull | 2,803 lbs
1271 kg |
Gear 1 used for pull test. | |
Photos

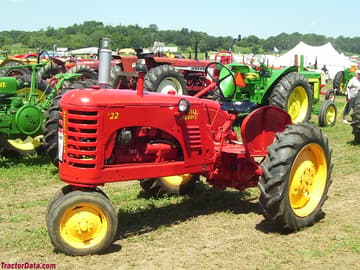

Massey-Harris 22 with tricycle front.
Massey-Harris 22 with adjustable wide front.
Massey-Harris 22 operator station and controls.
