Massey-Harris 23 Mustang
The Massey-Harris 23 Mustang is a tractor produced by Massey Harris. It is equipped with a 140 ci 2.3 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 2,928 lbs 1328 kg.
Fuel & Capacities
13 gal
49.2 L
Transmission
4 forward and 1 reverse
Operating Weight
2,928 lbs
1328 kg
Overview
 | 1952 - 1956
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Massey-Harris (a part of Massey Ferguson) |
Row-Crop tractor | |
The Marris-Harris model 23 Mustang replaced the model 22 in 1952. It featured new styling, but was mechanically similar. | |
Massey-Harris 23 Mustang Engine | |
|---|---|
Continential 2.3L 4-cyl gasoline | |
Fuel tank | 13 gal
49.2 L |
Engine details ...  | |
Massey-Harris 23 Mustang Transmission | |
|---|---|
4-speed unsynchronized gear | |
Transmission details ...  |
Massey-Harris 23 Mustang Power | |
|---|---|
PTO (claimed) | 27 hp
20.1 kW |
Plows | 2 |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.75 inches (row-crop)
210 cm |
76 inches (standard)
193 cm | |
87 inches (high-arch)
220 cm | |
Weight | 2,928 lbs
1328 kg |
Front tire | 4.00-15 |
Rear tire | 11-28 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
References | |
|---|---|
 | |
Power For Your Farm published in 1953, by Massey-Harris | |
Massey-Harris Tractors published in 1954 |
Engine
Engine Detail — 140 ci / 2.3 L Gasoline
Manufacturer | Continential F140 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 140 ci
2.3 L |
Bore/Stroke | 3.1875x4.375 inches
81 x 111 mm |
Rated RPM | 1500 |
Oil capacity | 5 qts
4.7 L |
Coolant capacity | 11 qts
10.4 L |
Transmission
Transmission — 4 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 4 forward and 1 reverse |
Oil capacity | 8 qts
7.6 L |
 | |
Dimensions
Massey-Harris 23 Mustang Tires | |
|---|---|
Ag front | 4.00-15 |
Ag rear | 11-28 |
Ag rear | 12-28 |
Dimensions | |
|---|---|
Wheelbase | 82.75 inches (row-crop)
210 cm |
76 inches (standard)
193 cm | |
87 inches (high-arch)
220 cm | |
Width | 70.9 inches (standard)
180 cm |
93.25 inches (row-crop)
236 cm | |
Operating weight | 2,928 lbs
1328 kg |
Ballasted weight | 4,522 lbs
2051 kg |
Massey-Harris 23 Mustang Height | |
|---|---|
58.4 inches (single-wheel)
148 cm | |
60.1 inches (tricycle)
152 cm | |
56.5 inches (standard)
143 cm | |
60.1 inches (high-arch)
152 cm | |
Photos

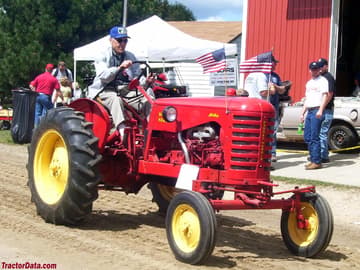

Massey-Harris 23 Mustang
Massey-Harris Mustang 23 with mounted cultivators.
Massey-Harris Mustang 23 with mounted cultivators.
Massey-Harris Mustang 23 with mounted cultivators.
Massey-Harris Mustang 23 with mounted cultivators.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Harris Massey-Harris 23 Mustang.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Massey Harris Massey-Harris 23 Mustang Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Massey Harris Massey-Harris 23 Mustang.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
