Massey-Harris 33

The Massey-Harris 33 is a tractor produced by Massey Harris. It is equipped with a 201 ci 3.3 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 5191 lbs 2354 kg.

Fuel & Capacities
Diesel
Transmission
5 forward and 1 reverse
Operating Weight
5191 lbs 2354 kg

Overview

Massey-Harris 33 tractor photo
1952 - 1955 Row-Crop tractor
Production
Manufacturer
Massey-Harris
Row-Crop tractor
Original price was $2,550 in 1955
Massey-Harris 33 Transmission
5-speed gear
Transmission details ...
Massey-Harris 33 Power
Drawbar (claimed)
28 hp 20.9 kW
PTO (claimed)
36 hp 26.8 kW
Plows
3
Drawbar (tested)
35.54 hp 26.5 kW
Belt (tested)
39.52 hp 29.5 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station
Power Take-off (PTO)
Rear PTO Type
540
Engine RPM
551@1500
Dimensions & Tires
Wheelbase
100.6 inches 255 cm
Weight
5191 lbs 2354 kg
Front tire
5.50-16
Rear tire
11-38
Full dimensions and tires ...
Belt Pulley
Diameter
13.5 inches 34 cm
Width
6.4 inches 16 cm
RPM
890
Speed
3146 ft/min 958.90 meters/min
References
33 references literature
Power For Your Farm published in 1953, by Massey-Harris
Massey-Harris Tractors published in 1954
Massey-Harris Tractors published in 1955

Engine

Engine options
Continental 3.3L 4-cyl gasoline
Continental 3.3L 4-cyl diesel

Engine Detail — 201 ci / 3.3 L Gasoline

Manufacturer
Continental
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
201 ci 3.3 L
Bore/Stroke
3.625x4.875 inches 92 x 124 mm
Air cleaner
oil bath
Compression
6.3:1
Rated RPM
1500
Starter volts
6
Oil capacity
8 qts 7.6 L
Coolant capacity
18 qts 17.0 L
Massey-Harris 33 Engine
Massey-Harris 33 engine image

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer
Continental
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
201 ci 3.3 L
Bore/Stroke
3.625x4.875 inches 92 x 124 mm
Air cleaner
oil bath
Compression
15:1
Rated RPM
1500
Oil capacity
8 qts 7.6 L
Coolant capacity
18 qts 17.0 L

Transmission

Transmission — 5 forward and 1 reverse gear

Type
gear
Gears
5 forward and 1 reverse
Clutch
254mm mechanical dry disc
With 11-38 rear tires.
33 gear speeds

Dimensions

Massey-Harris 33 Tires
Ag front
5.50-16
Ag rear
11-38
Ag front
9.00x10
Ag rear
12-28
13-28
12-38
13-30
Dimensions
Wheelbase
100.6 inches 255 cm
Operating weight
5191 lbs 2354 kg
Ballasted weight
7007 lbs 3178 kg
Tricycle to inches 21 to 0 cm Front tread
8.5
Rear tread
52.75 to 88.625 inches 133 to 225 cm

Tests

Nebraska Tractor Test 509
Gasoline 5-speed 2WD October 10 - 24, 1953 Link: Nebraska Tractor Test 509 file
Belt power (max)
39.52 hp 29.5 kW
Belt fuel use (max)
3.4 gal/hour 12.9 l/hour
Drawbar performance
Max power
35.54 hp 26.5 kW
Gear 3 used for power test.
Max pull
4,456 lbs 2021 kg
Gear 1 used for pull test.

Photos

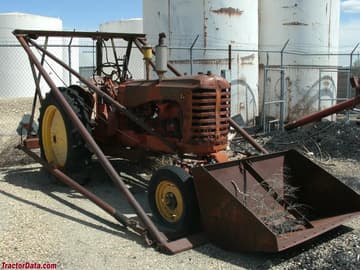

Massey Harris 33 with front-end loader.

Massey Harris 33 with front-end loader.

Massey Harris 33 with front-end loader.

Massey Harris 33 with front-end loader.

Massey Harris 33 tractor.

Massey Harris 33 tractor.

Massey-Harris 33 cut-away view.

Massey-Harris 33 cut-away view.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Harris Massey-Harris 33.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
