Massey-Harris No. 1 12-25
The Massey-Harris No. 1 12-25 is a tractor produced by Massey Harris. It is equipped with a 312 ci 5.1 L engine. Transmission: 2 forward and 1 reverse. Operating weight: 5400 lbs 2449 kg.
Fuel & Capacities
Gasoline
Transmission
2 forward and 1 reverse
Operating Weight
5400 lbs
2449 kg
Massey Harris Massey-Harris No. 1 12-25 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1918 - 1919
Standard-tread tractor |
|---|---|
1918 - 1919 | |
Standard-tread tractor | |
Production | |
|---|---|
Manufacturer | Massey-Harris |
Standard-tread tractor | |
Factories | Toronto, Ontario, Canada |
Weston, Ontario, Canada | |
The Massey-Harris No. 1 12-25 was based on the Parrett 12-25. The design was licensed from Parrett by Massey Harris and was the first tractor to carry the Massey name. | |
Massey-Harris No. 1 12-25 Engine | |
|---|---|
Buda 5.1L 4-cyl gasoline | |
Engine details ...  |
Massey-Harris No. 1 12-25 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
Massey-Harris No. 1 12-25 Power | |
|---|---|
Drawbar (claimed) | 12 hp
8.9 kW |
Belt (claimed) | 25 hp
18.6 kW |
Plows | 3 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Final drives | spur gear |
Steering | manual |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Weight | 5400 lbs
2449 kg |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 12 inches
30 cm |
Width | 7 inches
17 cm |
RPM | 1000 |
Engine
Engine Detail — 312 ci / 5.1 L Gasoline
Manufacturer | Buda HTU |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 312 ci
5.1 L |
Bore/Stroke | 4.25x5.50 inches
108 x 140 mm |
Rated RPM | 1000 |
Transmission
Transmission — 2 forward and 1 reverse gear
Type | gear |
Gears | 2 forward and 1 reverse |
 | |
Dimensions
Massey-Harris No. 1 12-25 Tires |
|---|
Dimensions | |
|---|---|
Length | 145 inches
368 cm |
Width | 76 inches
193 cm |
Height | 68 inches
172 cm |
Weight | 5400 lbs
2449 kg |
Photos

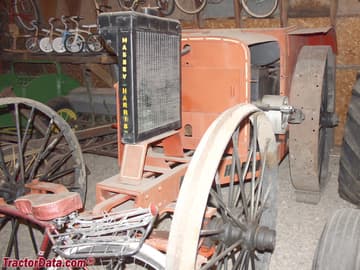

Massey-Harris No. 1 12-25
