Massey-Harris Pony 11

The Massey-Harris Pony 11 is a tractor produced by Massey Harris. It is equipped with a 62 ci 1.0 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 1450 to 1890 pounds.

Fuel & Capacities
7 gal 26.5 L
Transmission
3 forward and 1 reverse
Operating Weight
1450 to 1890 pounds

Overview

Massey-Harris Pony 11 tractor photo
1947 - 1954 Utility tractor
Production
Manufacturer
Massey-Harris
Utility tractor
Built in Woodstock, Ontario, Canada
Variants
Pony 14
industrial tractor
Massey-Harris Pony 11 Engine
Continental 1.0L 4-cyl gasoline
Engine details ...
Massey-Harris Pony 11 Transmission
3-speed unsynchronized gear
Transmission details ...
Massey-Harris Pony 11 Power
Plows
1
Drawbar (tested)
10.43 hp 7.8 kW
Belt (tested)
11.62 hp 8.7 kW
Performance test details ...
Mechanical
Two-wheel drive
Final drives
bull gear
Manual steering
Differential mechanical contracting band brakes
Open operator station.
Capacity
Fuel
7 gal 26.5 L
Hydraulic system
0.4 gal 1.5 L
Hydraulics
Type
optional
Capacity
0.4 gal 1.5 L
Pump flow
2.5 gpm 9.5 lpm
Power Take-off (PTO)
Rear PTO
optional
Rear PTO Type
540
Dimensions & Tires
Wheelbase
66 inches 167 cm
Weight
1450 to 1890 pounds
Front tire
4.00x-15
Rear tire
8-24
Full dimensions and tires ...
Belt Pulley
Diameter
6 inches 15 cm
Width
5.5 inches 13 cm
RPM
1990
Speed
3300 ft/min 1005.84 meters/min
Electrical
Charging system
generator
References
Pony 11 references literature
Pony published in 1950, by Massey-Harris
Power-Plus Tractors published in 1951, by Massey-Harris
Massey-Harris Tractors published in 1954

Engine

Engine Detail — 62 ci / 1.0 L Gasoline

Manufacturer
Continental N62
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
62 ci 1.0 L
Bore/Stroke
2.375x3.50 inches 60 x 89 mm
Air cleaner
oil bath
Compression
6.5:1
Rated RPM
1800
Oil capacity
4 qts 3.8 L
Coolant capacity
7 qts 6.6 L
Sparkplug
Champion 18625A
Massey-Harris Pony 11 Engine
Massey-Harris Pony 11 engine image

Transmission

Transmission — 3 forward and 1 reverse unsynchronized gear

Type
unsynchronized gear
Gears
3 forward and 1 reverse
Clutch
mechanical dry disc
Oil capacity
3.6 qts 3.4 L
With 8-24 rear tires.
Pony 11 unsynchronized gear speeds

Dimensions

Massey-Harris Pony 11 Tires
Ag front
4.00x-15
Ag rear
8-24
Ag rear
9-24
Dimensions
Wheelbase
66 inches 167 cm
Height
60 inches 152 cm
Front tread
45 to 75.5 inches 114 to 191 cm
Rear tread
41 to 72 inches 104 to 182 cm
Massey-Harris Pony 11 Weight
Shipping
1450 lbs 657 kg
Operating
1890 lbs 857 kg
Ballasted
2547 lbs 1155 kg

Tests

Nebraska Tractor Test 401
Gasoline 3-speed 2WD September 14 - 22, 1948 Link: Nebraska Tractor Test 401 file
Belt power (max)
11.62 hp 8.7 kW
Belt fuel use (max)
1.2 gal/hour 4.5 l/hour
Drawbar performance
Max power
10.43 hp 7.8 kW
Gear 2 used for power test.
Max pull
1432 lbs 649 kg
Gear 1 used for pull test.

Photos

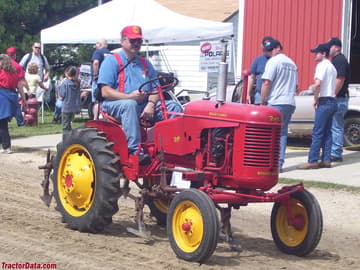

Massey-Harris Pony with cultivators, right side

Massey-Harris Pony with cultivators, right side

Massey-Harris Pony, left side

Massey-Harris Pony, left side

Massey-Harris Pony operator station and controls.

Massey-Harris Pony operator station and controls.
